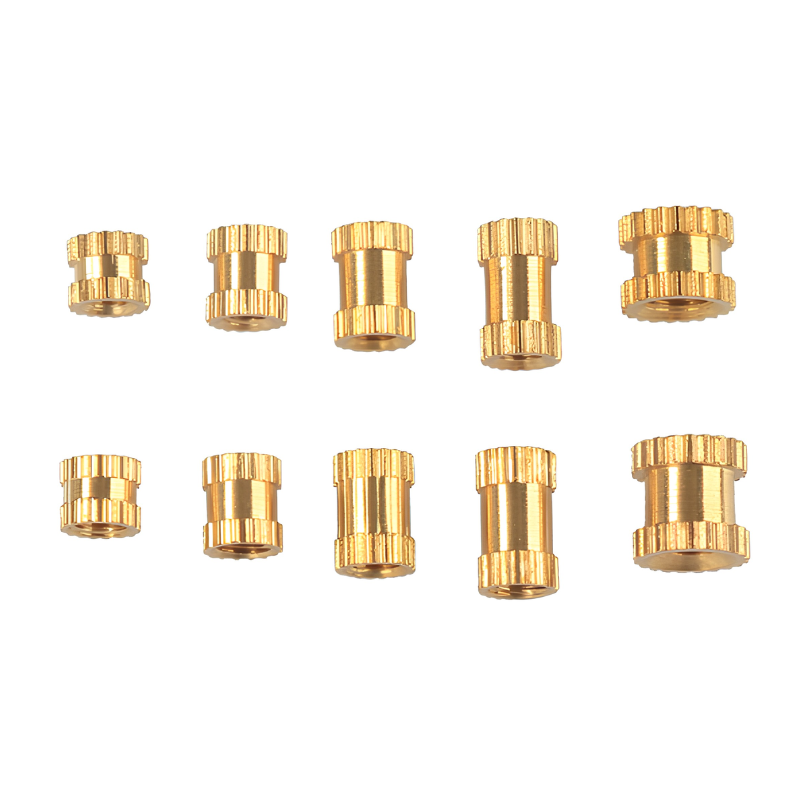

Threaded Insert Kit for 3D Printing (M2, M2.5 and M3) - 500 pcs.

Description

Threaded inserts provide metal mounting points in parts made of plastic. The construction features a through internal thread and knurled surfaces on both ends, which improve retention in the surrounding material. The inserts can be installed during plastic molding, by heat press-in, or using ultrasonic equipment. For 3D-printed parts, heat insertion is particularly useful and involves heating the insert and pressing it into a properly prepared hole.

The kit includes 10 dimensional variants with M2, M2.5 and M3 threads, allowing the insert size to be matched to different part thicknesses and screw diameters. H59 brass provides good machinability and corrosion resistance under typical operating conditions. The inserts can be used in electronic device enclosures, 3D-printed parts, prototypes, instruments, controller housings, and other plastic assemblies requiring repeated fastening and disassembly.

Features

• Type: knurled threaded inserts for plastics
• Material: H59 brass
• Thread type: metric coarse thread
• Available threads: M2, M2.5 and M3
• Construction: knurled at both ends with a smooth center section
• Thread: through
• Thread tolerance: 6H
• Dimensional tolerance: ±0.15 mm
• Recommended installation methods: mold-in, heat press-in, ultrasonic insertion
• Recommended heat insertion temperature: 180-220°C
• Maximum heat insertion temperature: 230°C
• Long-term operating temperature range: -40°C to 120°C
• Number of sizes: 10
• Number of inserts per size: 50 pcs.
• Total number of pieces: 500 pcs.

Kit includes

• 50x M2 x 3 mm
• 50x M2 x 4 mm
• 50x M2 x 5 mm
• 50x M2 x 6 mm
• 50x M2.5 x 3 mm
• 50x M2.5 x 4 mm
• 50x M2.5 x 5 mm
• 50x M2.5 x 6 mm
• 50x M3 x 4 mm
• 50x M3 x 5 mm
