ID: 574945
zł1.89
Tax included

zł1.54 tax excl.

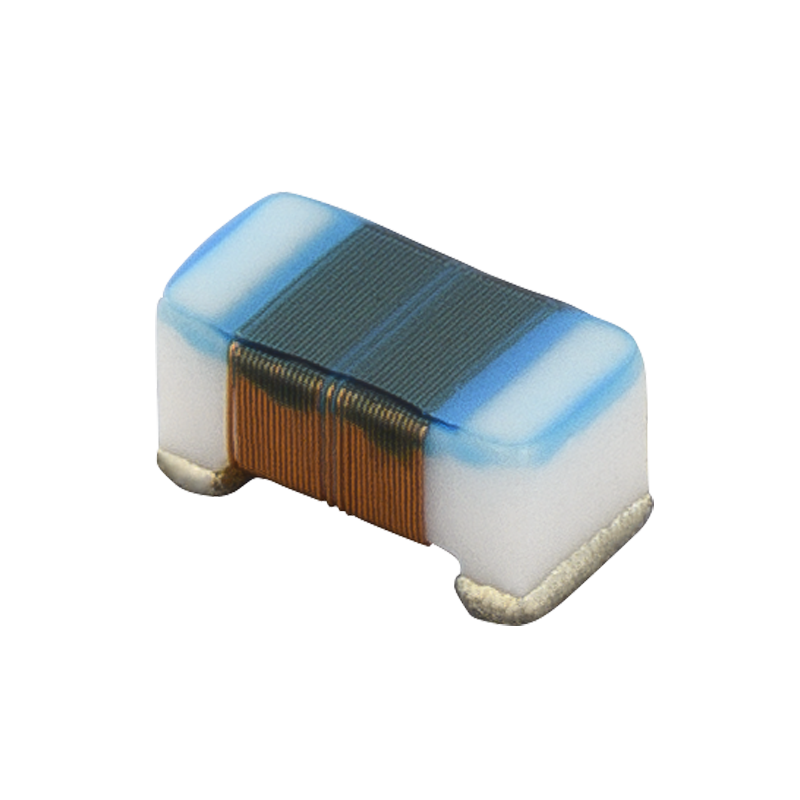

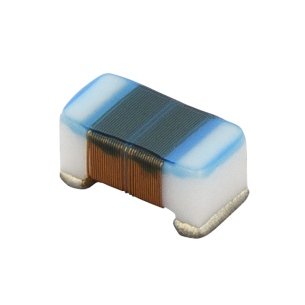

RF SMD inductor 39 nH in 0603 package designed for high-frequency circuits. Rated current 600 mA, maximum DC resistance 0.25 Ω and self-resonant frequency 2.2 GHz enable use in RF signal paths, filters and impedance matching networks in communication and consumer electronic devices. Murata LQW18AS39NG00D

24h
Available
Available quantity: 266

Description

Murata LQW18AS39NG00D is an RF SMD inductor with an inductance of 39 nH intended for high-frequency applications. The component is manufactured in a compact 1608 (0603) package and is suitable for RF circuits, impedance matching networks, RF filters and communication devices requiring stable performance at frequencies in the hundreds of MHz and GHz range.

The RF SMD inductor features a low maximum DC resistance of 0.25 Ω, a high self-resonant frequency of 2.2 GHz and a minimum Q factor of 40 at 250 MHz. The non-shielded construction supports RF performance requirements. The component is suitable for reflow soldering and operates within a temperature range of -40°C to +125°C.

Features

  • Manufacturer series: LQW18AS_00
  • Component type: RF SMD Inductor
  • Inductance: 39 nH ±2%
  • Inductance test frequency: 250 MHz
  • Rated current: 600 mA
  • DC resistance max.: 0.25 Ω
  • Self-resonant frequency: 2.2 GHz
  • Q factor min.: 40 at 250 MHz
  • Package: 1608 (0603)
  • Dimensions: 1.6 x 0.8 x 0.8 mm
  • Shielding type: Non-Shielded
  • Operating temperature: -40°C ~ +125°C
  • Soldering: Reflow
  • Mass: 0.003 g
