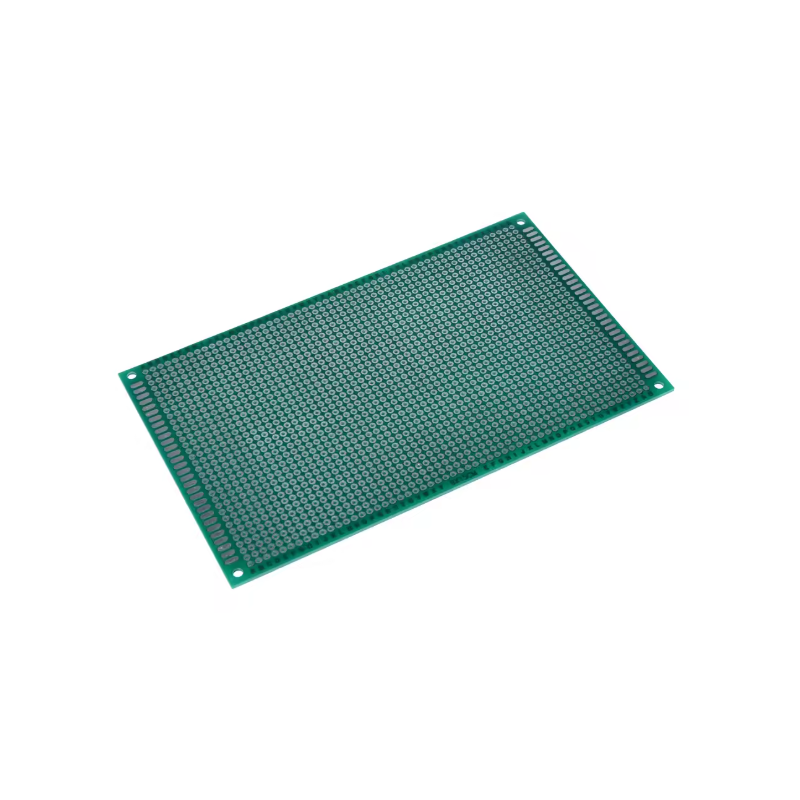

Universal double-sided PCB 90×150 mm
search
  • Universal double-sided PCB 90×150 mm
ID: 1199438
zł8.91
Tax included

zł7.24 tax excl.

The universal board with dimensions of 90×150 mm and 1,782 tinned holes enables convenient assembly and testing of electronic circuits in the 2.54 mm standard. The double-sided FR-4 laminate design and the presence of mounting holes make it a practical tool for hobby projects, educational purposes, and professional prototypes.

4 weeks
Awaiting delivery

Description

Universal prototype board measuring 90×150 mm, made of FR-4 laminate, designed for through-hole assembly and testing of electronic circuits in point-to-point technology. The hole layout in the standard 2.54 mm pitch ensures compatibility with most electronic components and prototype modules. The hole surfaces are tinned, which facilitates soldering and increases connection durability. The board has four mounting holes in the corners, allowing stable installation in an enclosure or on a mounting panel.

Properties

  • Material: FR-4 laminate with increased resistance to temperature and flame
  • Dimensions: 90×150 mm
  • Number of holes: 1,782
  • Hole pitch: 2.54 mm
  • Laminate thickness: 1.6 mm
  • Finish: pre-tinned holes
  • Type: double-sided board with lettering to facilitate prototyping
  • Mounting holes: 4 pieces in the corners
  • Can be cut to required dimensions
