- New

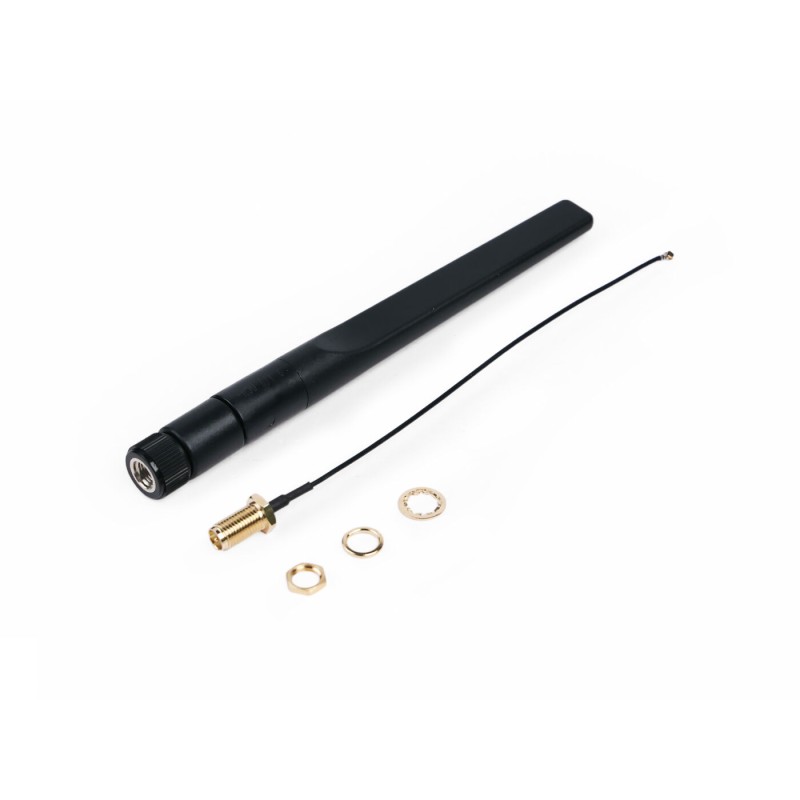

External 2.4G/5G antenna with 1.13 coaxial cable, RP-SMA male, 130mm
ID: 1198772
zł8.88
Tax included
zł7.22 tax excl.
External 2.4G/5G antenna with RP-SMA male connector and 130 mm cable improves stability and connection quality in wireless devices. Suitable for Wi-Fi systems, IoT, and industrial applications requiring reliable data transmission. Seeed Studio 114993587
Description
External dual-band antenna designed to operate in the 2.4 GHz and 5 GHz ranges, equipped with an RP-SMA male connector and a 1.13 coaxial cable with a length of 130 mm. Intended to improve signal quality in Wi-Fi devices, telemetry systems, IoT solutions, and communication equipment where reliable wireless connectivity is required. The antenna features linear polarization, omnidirectional radiation pattern, and resistance to environmental conditions. The housing made of black PC plastic ensures durability in long-term use. The product complies with RoHS and REACH standards.
Properties
- Frequency range: 2400–2500 MHz, 5100–7000 MHz
- Gain: up to 2.35 dBi @ 2500 MHz, up to 1.66 dBi @ 5580 MHz
- VSWR: max. 3.0:1
- Impedance: 50 Ω
- Maximum power: 10 W (at 25°C)
- Radiation pattern: omnidirectional
- Polarization: linear
- Housing material: PC plastic, black
- Operating temperature of antenna: -30°C to +80°C
- Storage temperature: -40°C to +85°C
- Connector: RP-SMA male
- Cable length: 130 mm
- Cable type: coaxial 1.13
- Cable operating band: DC – 6 GHz
- Working voltage: 335 V
- Test voltage: 750 V
- Cable VSWR: max. 1.4
- Connector lifespan: 500 cycles
- Cable operating temperature: -55°C to +125°C
- Corrosion resistance (salt spray): 48 h
- Compliance: RoHS, REACH
1198772
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
