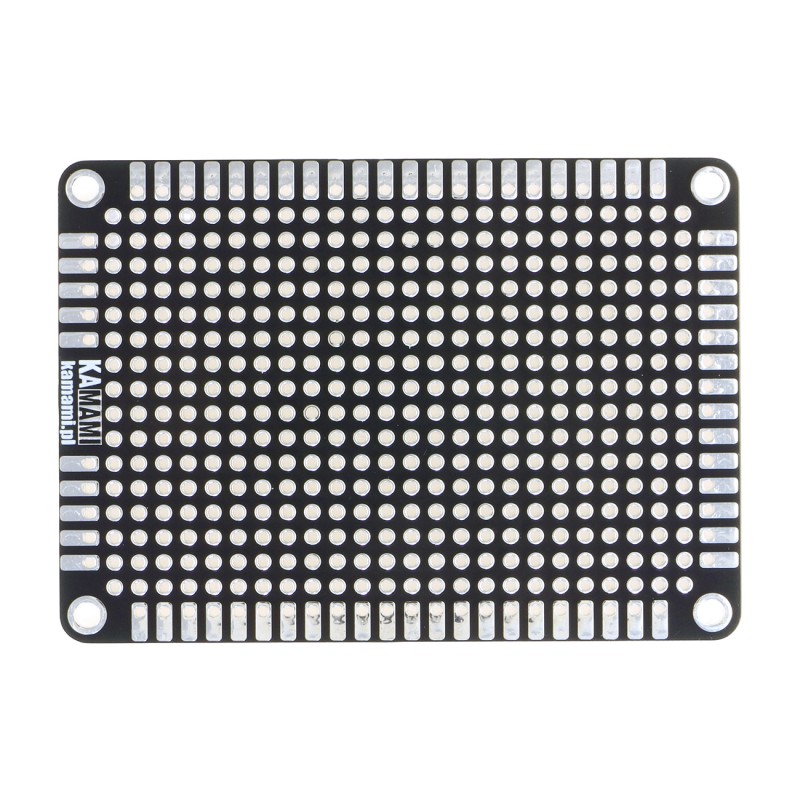

KAmod Proto 50x70 - double-sided universal PCB 50 x 70 mm
ID: 1204291
5902186339903
zł7.90
Tax included
zł6.42 tax excl.
Double-sided universal PCB KAmod Proto 50x70 measuring 50 x 70 mm, equipped with 452 plated-through holes with a diameter of 1 mm and a pitch of 2.54 mm. Made of 1.6 mm thick FR-4 laminate and designed for building prototype electronic circuits using through-hole (THT) components. KamamiLabs KAmod Proto 50x70
Description
Double-sided universal PCB designed for building and testing prototype electronic circuits using through-hole (THT) components. The KAmod Proto 50x70 measures 50 x 70 mm and features 452 plated-through holes with a diameter of 1 mm, arranged at a standard 2.54 mm pitch compatible with many commonly used electronic components. The double-sided design allows connections to be made on both sides of the board, while tinned contact pads facilitate component soldering. The solder mask helps reduce the risk of accidental solder bridges between adjacent pads. The PCB is made of 1.6 mm thick FR-4 laminate and can be used to build small electronic modules, control circuits, power supply circuits, and other projects based on THT components.
Features
- Double-sided design with plated-through holes
- Solder mask
- Tinned contact pads
- Material: FR-4 laminate
- Number of holes: 452
- Hole diameter: 1 mm
- Hole pitch: 2.54 mm
- Board thickness: 1.6 mm
- Dimensions: 50 x 70 mm
