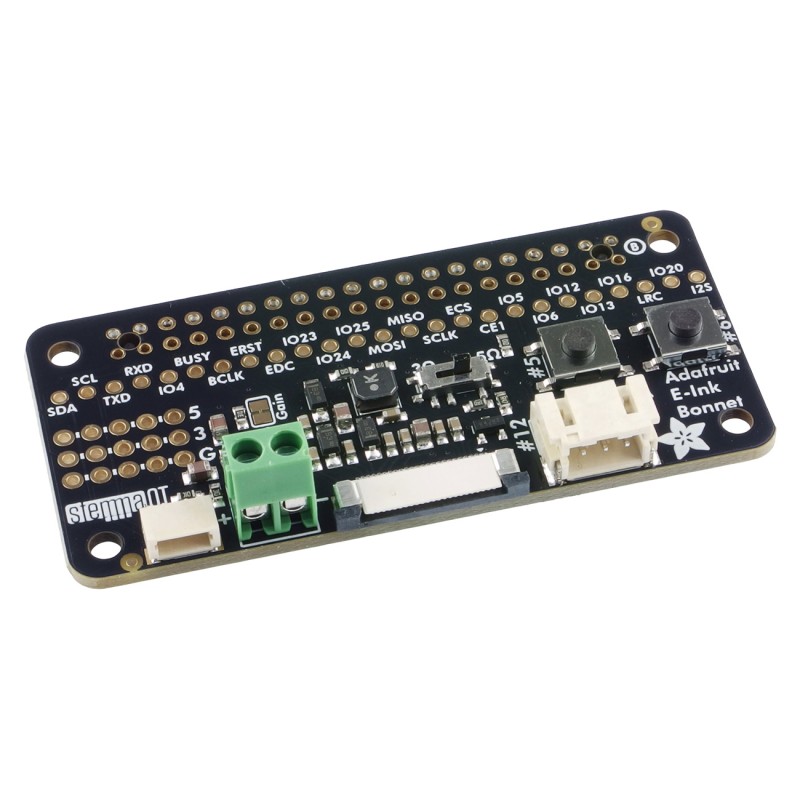

Main view
search
  • Main view
  • Front view (rotated adapter)
  • Angled view
  • Connector side view
  • Top view
  • Bottom view
ID: 1202018
5902186333970
zł72.16
Tax included

zł58.67 tax excl.

Bonnet-type module for Raspberry Pi that enables connection of e-paper displays with a 24-pin FPC connector, featuring user buttons, a STEMMA QT connector and a 3W I2S audio amplifier. Adafruit 6418

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The Adafruit 6418 E-Ink Bonnet is designed for integrating e-paper displays with Raspberry Pi single-board computers equipped with a 2x20 GPIO header. The module simplifies the use of E-Ink displays with a standard 24-pin flexible flat cable connector by providing all required interface circuitry for SPI communication and display control signals. This solution is suitable for building low-power information screens, desk panels and wall-mounted displays controlled from a Linux-based system.


The board includes two user buttons, a STEMMA QT connector for connecting I2C sensors and devices, and a MAX98357 I2S audio amplifier with up to 3W output power, enabling audio notifications and feedback. The module works with Python libraries provided by the manufacturer and supports a wide range of e-paper displays. The display itself is not included and must be selected separately. The fully assembled design allows immediate use after connecting to a Raspberry Pi and installing the required software.

A short video presenting the product.

Note!

This product does not include an e-paper display. The adapter is intended solely for connecting compatible E-Ink displays with a 24-pin FPC connector!

Features

  • Module type: Bonnet for Raspberry Pi
  • Compatibility: Raspberry Pi with 2x20 GPIO header
  • Display connector: 24-pin FPC for E-Ink displays
  • Communication interface: SPI
  • User buttons: 2
  • Sensor connector: STEMMA QT I2C
  • Audio amplifier: MAX98357 I2S
  • Audio output power: up to 3W
  • Supported speaker impedance: 4–8Ω
  • Power supply: from Raspberry Pi
  • Assembly state: fully assembled module
  • Dimensions: 65.0 x 30.7 x 14.0 mm
  • Weight: 10.6 g
