2.4 GHz WiFi PCB antenna with IPEX connector
ID: 1196920
5902186309425
zł4.92
Tax included
zł4.00 tax excl.
A 2.4 GHz PCB antenna with an IPEX connector, featuring a 4 dBi gain and compact dimensions, designed for Wi-Fi, Bluetooth, and ZigBee modules. Thanks to its low loss and simple installation, it is used in IoT devices, wireless communication systems, and consumer electronics
Description
Compact PCB antenna operating in the 2.4 GHz band, designed for wireless communication systems such as Wi-Fi (IEEE 802.11 b/g/n), Bluetooth, ZigBee, WiMAX, and MIMO. Its PCB-based construction with a 3M adhesive layer allows easy internal mounting inside electronic device enclosures. The antenna features a 4 dBi gain, linear polarization, and a low standing wave ratio (VSWR ≤ 1.5), ensuring stable and efficient operation in IoT applications and mobile devices.
Properties
- Antenna type: PCB with 3M adhesive (internal mounting)
- Operating band: 2400–2500 MHz
- Gain: 4 dBi
- Polarization: linear
- VSWR: ≤ 1.5
- Impedance: 50 Ω
- Antenna size: 47.5 × 7.2 × 0.7 mm
- Cable: RG1.13
- Cable length: 5 cm / 12 cm / 20 cm / 30 cm / 50 cm (depending on version)
- Connector: IPEX (1st or 4th generation) or optional soldering version
1196920
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
External antenna with 5.8dBi gain dedicated to LoRa communication. It is designed to operate in the frequency band from 863 to 870MHz and is 90cm long. It was made of fiberglass and aluminum. SparkFun WRL-19274
zł288.23
3 weeks
No product available!
Telescopic tube made of lightweight carbon fiber that provides portability and strength, ideal for GNSS projects. With an adjustable length (1.3m to 2.2m), built-in bubble level and stable D-shaped design, it is compatible with a wide range of GNSS devices, ensuring precise measurements in the field. SparkFun GPS-25795
zł663.90
3 weeks
No product available!
ANT3216LL00R2400A is a compact, high-performance 2.4 GHz SMT ceramic antenna from Yageo, ideal for wireless devices using Wi-Fi, Bluetooth, Zigbee, or ISM bands
zł2.90
24h
Available quantity: 46
Available
The internal WiFi antenna with a 3 dBi gain, supporting 2.4 GHz and 5.8 GHz frequency bands, provides stable wireless connections for devices such as Mini PCI cards, cameras, USB adapters, and network routers. Available with RP-SMA or SMA connectors, it ensures easy integration with a variety of network equipment. Its flexible rubber construction allows for optimal positioning to achieve the best signal.
zł5.15
24h
Available quantity: 7
Available
The adapter allows you to connect the antenna with the SMA 50 Ω female connector to the device with the uFL socket (also known as u.FL, IPEX, IPAX, IPX, MHF, AM). The cord has a length of 20cm.
zł8.66
24h
Available quantity: 130
Available
Antenna with MCX male connector operating in the 1090 MHz frequency band. It has a gain of 3.5 dBi and a 1 m cable. Magnetically attached
zł15.18
24h
Available quantity: 8
Available
Aluminum adapter that allows you to convert the 1/4" thread used in photographic tripods to a 5/8" 11-TPI thread. Standard for antennas and surveying equipment. Thanks to its lightweight and durable design, it allows you to easily and stably mount RTK antennas on a tripod or monopod, ensuring precise measurements. SparkFunPRT-17546
zł31.16
24h
Available quantity: 2
Available
External waterproof LPWA antenna dedicated to communication in LoRa networks in the 868 MHz frequency band. It is mounted using the built-in magnet in the cradle. Waveshare 868/915M Magnet Mount Antenna
zł8.52
4 weeks
No product available!
A broadband antenna that enables various telecommunications networks, including 5G, 4G, 3G and GNSS. It operates in the frequency range from 600 to 6000 MHz. Waveshare 5G/4G/3G/GNSS External Antenna
zł17.38
4 weeks
No product available!
A 2.4GHz antenna dedicated to the XIAO ESP32C3. With a robust and effective design, the antenna enhances the wireless capabilities of the board. Seeed Studio 103990623
zł13.51
24h
Available quantity: 7
Available

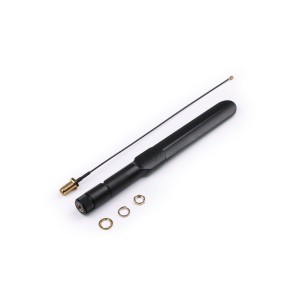

Seeed Studio 4G Antenna Kit is a reliable and robust solution for ensuring high-quality LTE connectivity in industrial and IoT devices. With a wide frequency range, strong environmental resistance, and easy integration with 4G modules, the antenna is ideal for applications in industrial automation, smart cities, and wireless communication systems.
zł26.22
4 weeks
No product available!
Antenna with RP-SMA male plug operating in the 433 MHz frequency band. It has a gain of 3 dBi
zł9.25
24h
Available quantity: 1
Available
Antenna with an SMA male connector working in the 868 MHz frequency band. It has a gain of 3 dBi. Comes with an SMA - u.FL adapter
zł9.37
24h
Available quantity: 58
Available
External waterproof LPWA antenna dedicated to communication in LoRa networks in the 433 MHz frequency band. It is mounted using the magnet built into the cradle. Waveshare 433/470M Magnet Mount Antenna
zł8.84
24h
Available quantity: 147
Available
Taoglas Wi-Fi antenna with U.FL connector It provides the perfect connection to Wi-Fi in any device. The frequency band of the antenna is 2.4 GHz
zł37.90
24h
Available quantity: 10
Available

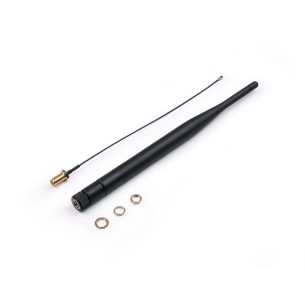

The LoRa antenna kit for reTerminal DM and the Wio-WM1302 module provides stable communication in the 824–960 MHz and 1710–2700 MHz bands. With 2 dBi gain, omnidirectional radiation pattern, and durable construction, the antenna is suitable for IoT, industrial automation, as well as monitoring and remote control systems.
