- New

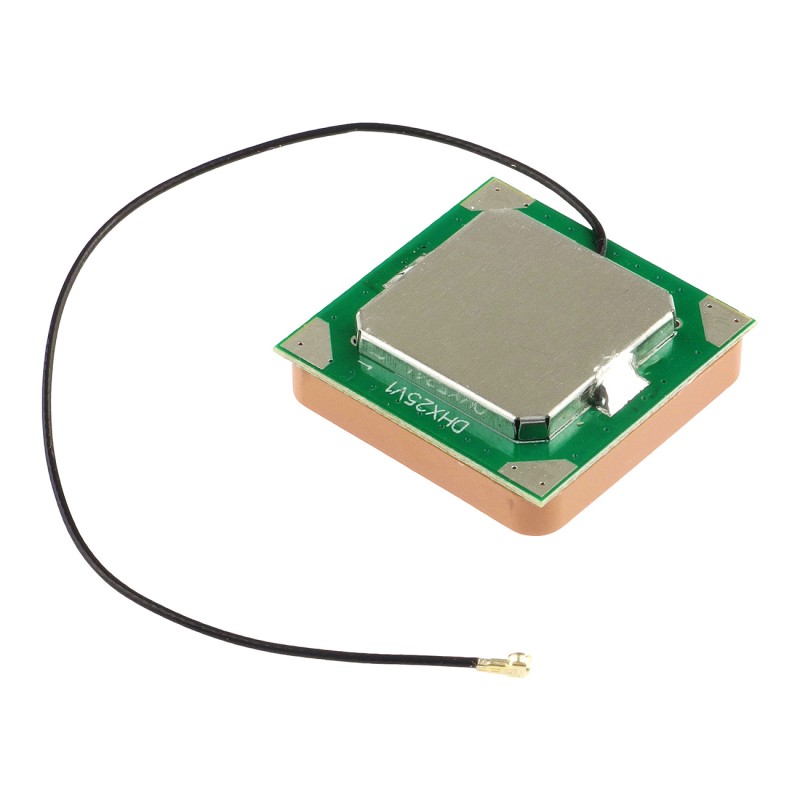

Internal GPS active antenna 28dB with MHF4 connector
ID: 1205258
zł15.99
Tax included
zł13.00 tax excl.
Antenna with a built-in high-sensitivity LNA amplifier for mounting in devices using GPS modules. Equipped with a cable terminated with an MHF4 connector. Dimensions: 25 x 25 x 4 mm
Description
Antenna with a built-in low-noise amplifier designed for integration in devices using GPS modules equipped with an MHF4 connector. The design improves satellite signal reception quality in compact devices where the use of an external antenna is limited.
The integrated LNA amplifier increases reception sensitivity and improves stability in environments with elevated interference levels. The antenna operates with GPS receivers in the 1575.42 MHz band and is used in navigation systems, trackers, IoT devices and microcontroller-based projects.
Features
- Built-in ceramic antenna: 25 x 25 x 4 mm
- Designed for GPS operation: 1575.42 +/- 5 MHz
- VSWR: <= 1.3
- Gain: 28 dB
- Impedance: 50 Ω +/- 10 Ω
- Polarization: circular
- Current consumption: <= 9 mA at 3.3 V
- Built-in low-noise amplifier LNA
- High sensitivity
- High interference resistance
- Connector: MHF4
- Supply voltage range: 1.4 - 3.6 V
- Operating temperature range: -40 ~ 80°C
- Dimensions: 25 x 25 x 4 mm
1205258
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
