- New

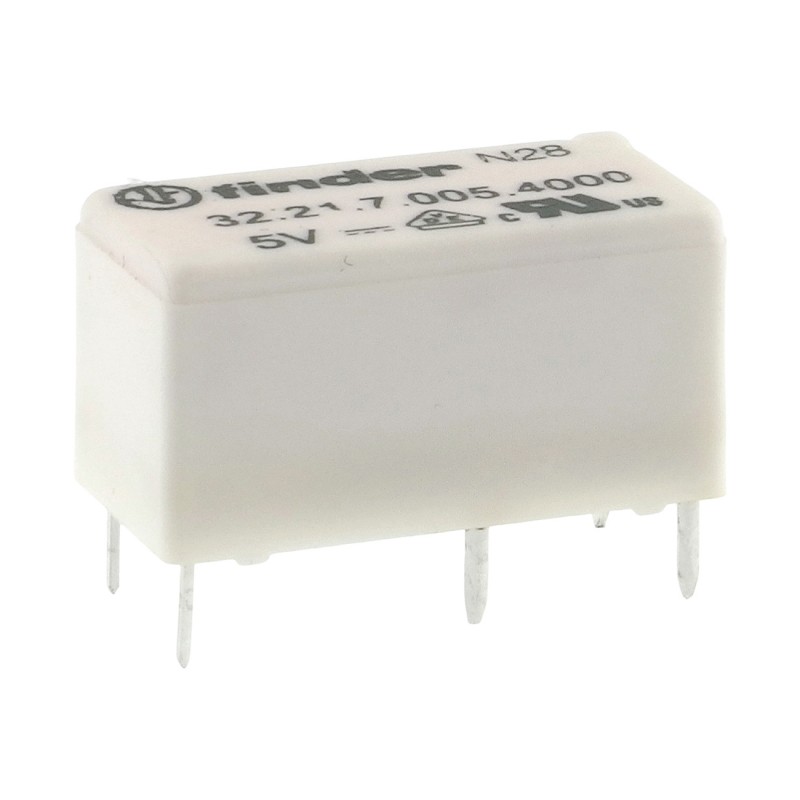

Subminiature PCB Relay 6A - Finder 32.21.7.005.4000
ID: 1206315
zł14.46
Tax included
zł11.76 tax excl.
Subminiature relay designed for PCB mounting, featuring 1 changeover contact and a sensitive 5 V DC coil. The design enables switching loads up to 6 A at voltages up to 250 V AC. Suitable for automation systems, controllers, electronic modules, and control circuits requiring a compact relay with low power consumption. Finder 32.21.7.005.4000
Description
Miniature electromagnetic relay designed for mounting in PCB circuits. The design features 1 changeover contact (SPDT) with a switching capacity up to 6 A and a sensitive 5 V DC coil with a rated power of 0.2 W. The operating voltage range of the coil is from 3.9 V to 7.5 V DC, enabling compatibility with low-voltage control systems. Coil resistance is 125 Ω, with current consumption of approximately 40 mA.
The relay features 5 kV coil-to-contact insulation and contacts made of AgSnO2 material. The sealed RT III enclosure increases resistance to environmental conditions and enables use in industrial equipment and automation systems. Operating temperature range extends from -40°C to +85°C, while electrical endurance reaches 50000 cycles. Compact dimensions of 10 × 10.7 × 20 mm simplify integration in devices with limited installation space.
Features
- Subminiature relay for PCB mounting
- 1 changeover contact (SPDT)
- Rated contact current: 6 A
- Rated contact voltage: 250 V AC
- Sensitive 5 V DC coil
- Coil operating voltage range: 3.9–7.5 V DC
- Rated coil power: 0.2 W
- Coil resistance: 125 Ω
- Coil current consumption: 40 mA
- Hold voltage: 2 V
- Drop-out voltage: 0.5 V
- Coil/contact insulation: 5 kV
- Contact material: AgSnO2
- Sealed RT III enclosure
- Electrical endurance: 50000 cycles
- Operating temperature: from -40°C to +85°C
- Dimensions: 10 × 10.7 × 20 mm
1206315
Data sheet
- Output current
- 6A
- Number of channels
- 1
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 5 VDC
