1D/2D code scanner module with DPM code recognition, USB/UART interfaces - Waveshare 32387
ID: 1201184
zł349.22
Tax included
zł283.92 tax excl.

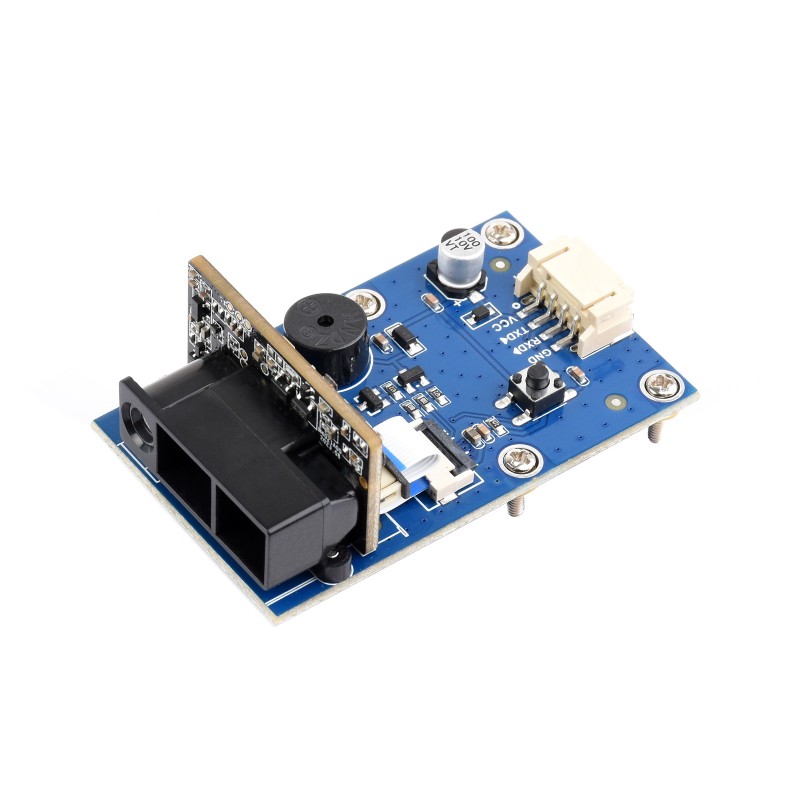

Barcode Scanner Module (E) is a compact and precise module for reading 1D/2D codes, compatible with industrial DPM codes. With USB and UART interfaces and various operating modes, it will work well in automation applications, production, identification and tracking systems.
Description
Industrial barcode and 2D code scanner module supporting a wide range of formats, including DotCode and DataMatrix (DM). Supports DPM (Direct Part Marking) codes applied to metal or PCB surfaces, offering high precision and fast decoding even at low contrast.
Integrated smart image recognition algorithm allows effective decoding of 1D/2D codes from various surfaces. The module features USB and UART-TTL interfaces, and can operate as a HID USB keyboard or as a virtual COM port. Supports three operating modes: manual trigger, continuous auto-scan, and auto-detect with automatic scanning.
Compact dimensions (56.41 × 34.00 mm), USB power supply and ease of integration make this module suitable for industrial automation, manufacturing, traceability and embedded identification systems.
Features
- Recognition of 1D/2D codes including DPM, DotCode, DataMatrix (DM)
- Reads codes on paper, metal and PCB
- Operating modes: manual, continuous auto, auto-detect & scan
- Interfaces: USB (virtual COM / HID keyboard), UART TTL
- Supports multiple data output modes
- Board size: 56.41 × 34.00 mm
- Scan head size: 14.00 × 18.80 × 13.33 mm
- Powered via USB or UART
- Ready for embedded system integration
Included
- Barcode Scanner Module (E) ×1
- PH2.0 4-pin cable ×1
1201184
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
