ID: 1201001
zł133.28
Tax included

zł108.36 tax excl.

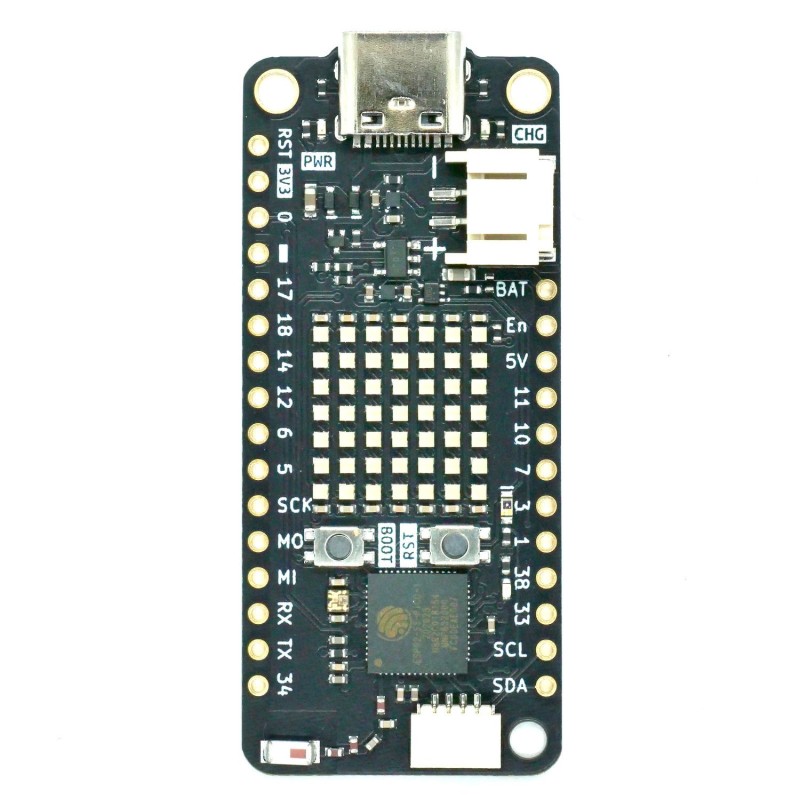

This ESP32-S3-based development board features a dual-core 32-bit 240 MHz processor, 8 MB of Flash memory, and 2 MB of PSRAM. Equipped with 2.4 GHz Wi-Fi with a 3D antenna, a built-in 7x7 RGB LED matrix, and 22 GPIO pins, it enables the creation of advanced IoT projects, visualizations, and interactive interfaces. The module includes a LiPo battery management circuit, two 3.3V 700 mA regulators, and a USB-C connector with protection. FeatherS3 Neo

1 weeks
Awaiting delivery

Description

FeatherS3 Neo is a modern, fully functional development board based on a dual-core 32-bit 240 MHz processor, designed for projects requiring high computing power, low energy consumption, and rich functionality. With an integrated 2.4 GHz Wi-Fi module (802.11b/g/n) and a high-performance 3D antenna, FeatherS3 Neo enables stable and fast wireless communication across a wide range of applications—from Internet of Things (IoT) projects and home automation to educational solutions and prototyping.


The board is equipped with 8 MB SPI Flash memory and 2 MB additional PSRAM, providing ample space for data and smooth handling of complex applications. An innovative feature is the built-in 7×7 RGB LED matrix, capable of displaying text, icons, lighting effects, and animations—perfect for visualizing status or creating impressive interfaces. The matrix has its own 3.3 V regulator, which automatically disconnects power during deep sleep mode, significantly reducing power consumption. Additionally, LED power can be controlled programmatically via pin IO39.


FeatherS3 Neo features 22 GPIO pins and a QWIIC/STEMMA connector for easy sensor and module connections without soldering. The board includes a LiPo battery management system, two 3.3 V regulators (700 mA each), and USB-C port protection. Built-in LEDs Power (red), Charge (orange), and IO13 (blue) help monitor power status, while the VBAT sensor on IO2 and VBUS detection on IO15 enable intelligent power management. FeatherS3 Neo is fully Feather standard compatible, ensuring compatibility with a wide range of accessories and expansion modules. It supports popular development environments such as ESP-IDF, MicroPython, Arduino, and PlatformIO, making it suitable for both professionals and electronics enthusiasts.

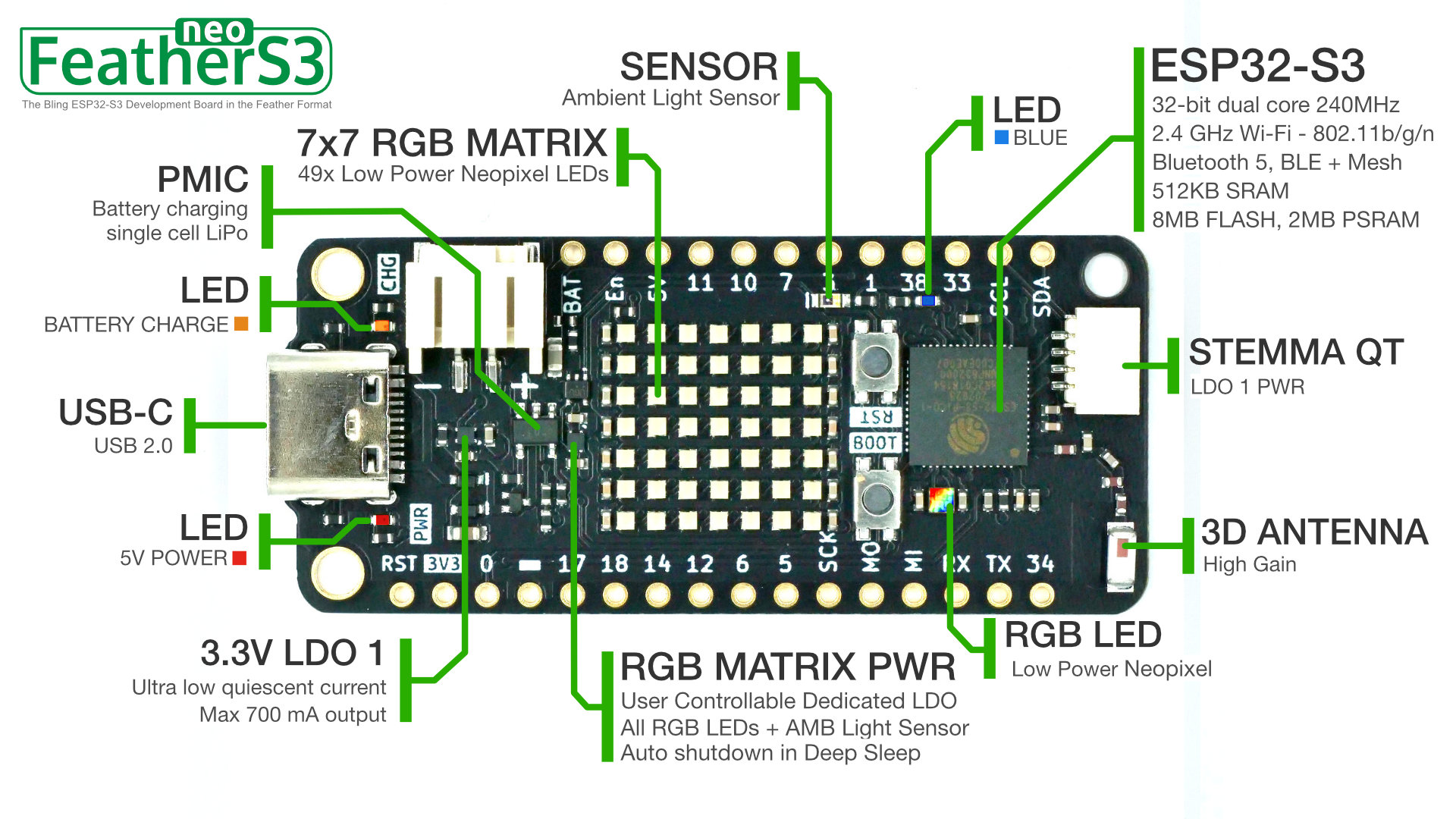

Features

  • ESP32-S3 module
  • Processor: 32-bit, dual-core, 240 MHz
  • Flash memory: 8 MB SPI
  • PSRAM: 2 MB
  • Connectivity: Wi-Fi 2.4 GHz (802.11b/g/n)
  • Antenna: built-in 3D High Gain
  • Voltage regulators: 2x LDO 3.3 V / 700 mA
  • LiPo battery management with energy optimization
  • USB-C connector
  • LED indicators: Power (red), Charge (orange), IO13 (blue)
  • 7×7 RGB LED matrix with programmable power control (IO39)

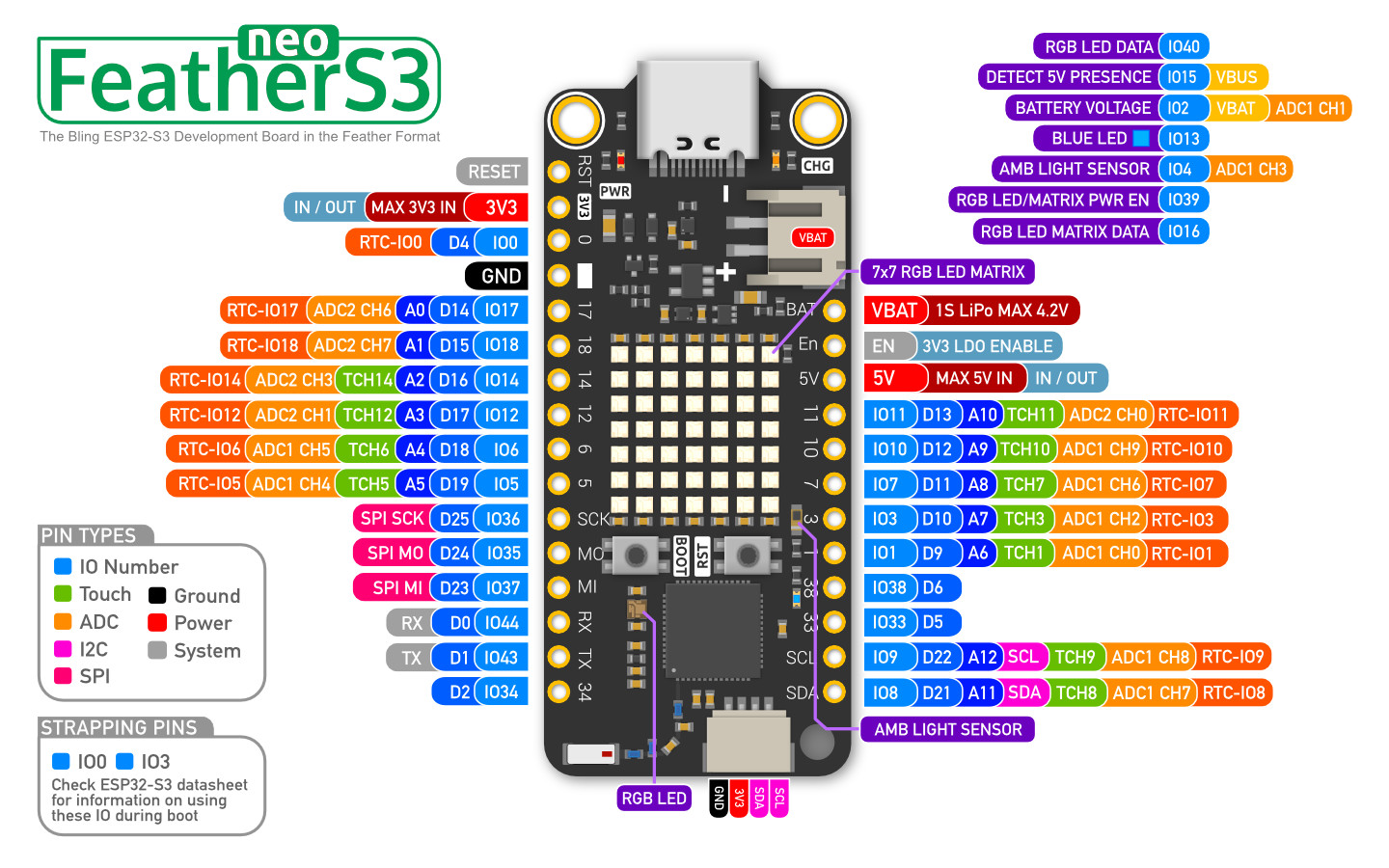

  • Number of GPIO: 22
  • VBAT sense on IO2 and VBUS detection on IO15
  • QWIIC/STEMMA connector
  • Form factor: Feather – compatible with Feather accessories
  • Supported environments: ESP-IDF, MicroPython, Arduino, PlatformIO
  • Dimensions: 52.3 × 22.9 mm

Kit contains

  • FeatherS3 Neo board
  • Goldpin headers
