- New

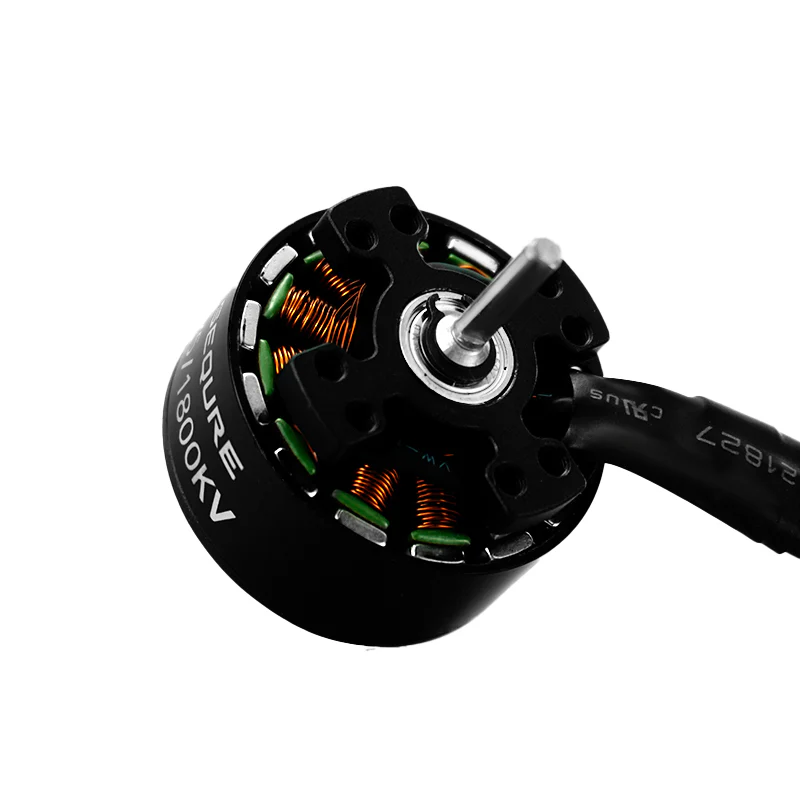

SEQURE 3625 - BLDC 2-4S 1800KV brushless motor
ID: 1205242
zł145.89
Tax included
zł118.61 tax excl.
A brushless motor designed for 1/10th scale RC crawlers, offering high torque and smooth operation thanks to its 12N14P configuration. The 1800KV model works with 2-4S LiPo batteries and provides an optimal balance of power and control at low speeds. Its robust CNC aluminum construction, 3.17mm steel shaft, and precision bearings ensure durability and reliability in challenging terrain. The motor is equipped with 16AWG wires with 3.5mm plugs and is recommended for ESCs rated at at least 70A. SEQURE 3625 2-4S 1800KV
Description
SEQURE 3625 is a brushless motor designed specifically for 1/10 scale RC crawler vehicles, intended for off-road driving and obstacle traversal. Thanks to its compact size and optimized design, it delivers very high torque while maintaining low weight. The motor features a 12-slot stator (12N) and a 14-pole rotor (14P), ensuring smooth and dynamic operation even at low speeds, which is essential for crawler-type vehicles. The use of high-purity copper windings significantly increases power and improves overall motor performance.
High efficiency is further enhanced by an advanced magnetic system consisting of 14 magnets, providing high torque and fast response time. The housing is made of high-quality CNC-machined aluminum, ensuring durability and effective heat dissipation during operation. Additionally, a stainless steel shaft and precision bearings are used to increase lifespan and reliability. The design has been optimized for easy installation thanks to a multi-pattern mounting hole layout, eliminating compatibility issues with different chassis types.
The motor operates with low noise levels thanks to a design that reduces vibration and aerodynamic noise, improving user comfort. Its relatively low weight of approximately 90 g helps lower the vehicle’s center of gravity and improves stability in rough terrain. The 1800KV version offers an optimal balance between speed and torque, making it an ideal choice for off-road applications. The motor is compatible with 2–4S LiPo batteries and is recommended for use with ESCs rated at least 70 A. The SEQURE 3625 is an excellent choice for users looking for a durable, powerful, and compact drive solution for RC off-road vehicles.
Features
- Model: SEQURE 3625
- Type: brushless motor
- Application: 1/10 RC crawler vehicles
- Operating voltage: 2–4S LiPo
- Configuration: 12N/14P
- Stator size: 30 × 12 mm
- Shaft diameter: 3.17 mm
- KV rating: 1800KV
- Motor wires: 16 AWG, length 200 mm
- Mounting hole spacing: 24.5 mm
- Connectors: 3.5 mm banana (male)
- Recommended ESC: ≥ 70 A
- Housing: CNC-machined aluminum
- Shaft: stainless steel
- Bearings: high precision
- Low-noise design
- Dimensions (without shaft): 36 × 25 mm
- Weight (with wires): 90 g
Kit contains
- SEQURE 3625 brushless motor
- 3 × 3.5 mm banana plugs
- 3 × heat shrink tubes
1205242
Data sheet
- Rotation speed
- Inna
- Diameter
- 30 mm
- Power supply voltage
- 14,8 V
- Height
- 12,5 mm
- Weight
- 90 g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
