- New

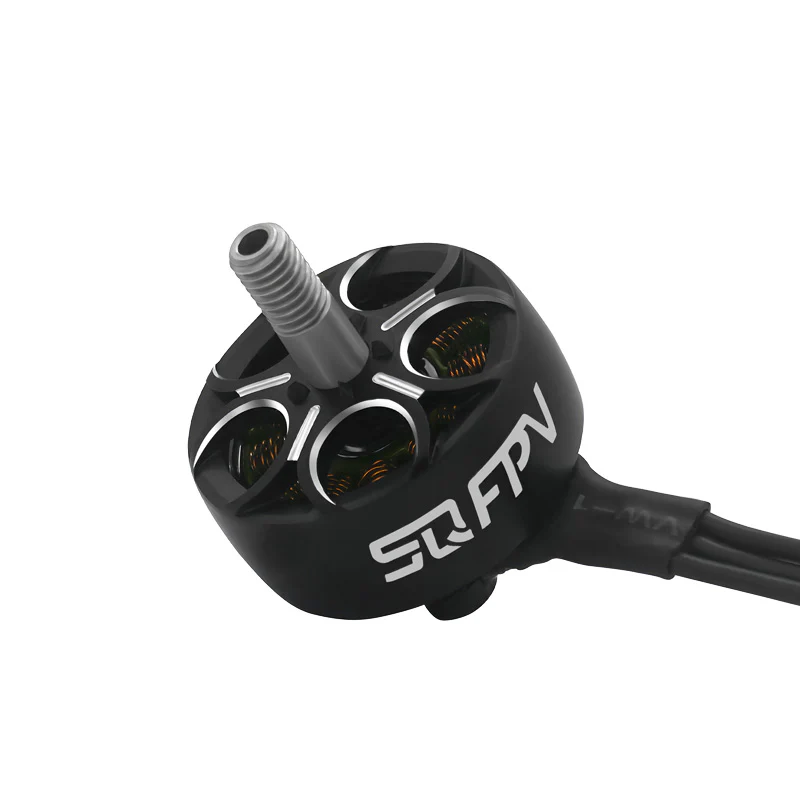

SEQURE S2207 - 8S 1500KV BLDC brushless motor
ID: 1205243
zł125.98
Tax included
zł102.42 tax excl.
A brushless FPV motor designed for racing and long-range applications, offering high efficiency and dynamic throttle response. Its 22x7mm 12N14P design with high-quality copper windings and a 14-pole rotor ensures stable and smooth operation under heavy loads. The motor operates in the 4-8S LiPo/LiHV range, reaching a maximum power of 1210W and a current of up to 36A, allowing for aggressive flights while maintaining reliability. SEQURE S2207 BLDC 8S 1500KV
Description
SEQURE S2207 BLDC 8S 1500KV is a brushless motor designed for FPV drones, optimized for racing and long-range applications. The motor design has been engineered for high efficiency and strong torque, resulting in dynamic and stable performance across the entire RPM range. The 22×7 mm stator in a 12-slot configuration, combined with high-purity copper windings, ensures high power density and fast throttle response. The motor uses a 14-pole magnet structure with high thermal resistance, providing smooth operation and high torque output. The housing is made of CNC-machined aviation-grade aluminum, ensuring high rigidity and effective heat dissipation. A precise design with minimal air gap improves energy efficiency and reduces losses. The motor features a 5 mm diameter shaft made of stainless steel, increasing resistance to mechanical stress. High-quality bearings ensure long lifespan and quiet, smooth operation even at high speeds. The 1500KV version is optimized for operation with 4–8S LiPo/LiHV batteries, offering a highly dynamic performance profile. The SEQURE S2207 is an excellent choice for pilots seeking power and reliability in demanding FPV flight conditions.
Features
- Model: S2207
- KV: 1500KV
- Winding configuration: 12N14P
- Stator size: 22 × 7 mm
- Shaft diameter: 5 mm
- Silicone wires: 20 AWG, length 150 mm
- No-load current (10V): 1 A
- Operating voltage: 4–8S LiPo / LiHV
- Test voltage: 33.6 V
- Maximum current: 36 A
- Maximum power: 1210 W
- Motor weight (with wires): 35 g
Kit contains
- SEQURE S2207 motor
- M5 lock nut
- 5 × M3 × 8 mm screws (button head, hex)
1205243
Data sheet
- Rotation speed
- Inna
- Diameter
- 22 mm
- Power supply voltage
- 22,2 V
- Height
- 7 mm
- Weight
- 35 g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
