- New

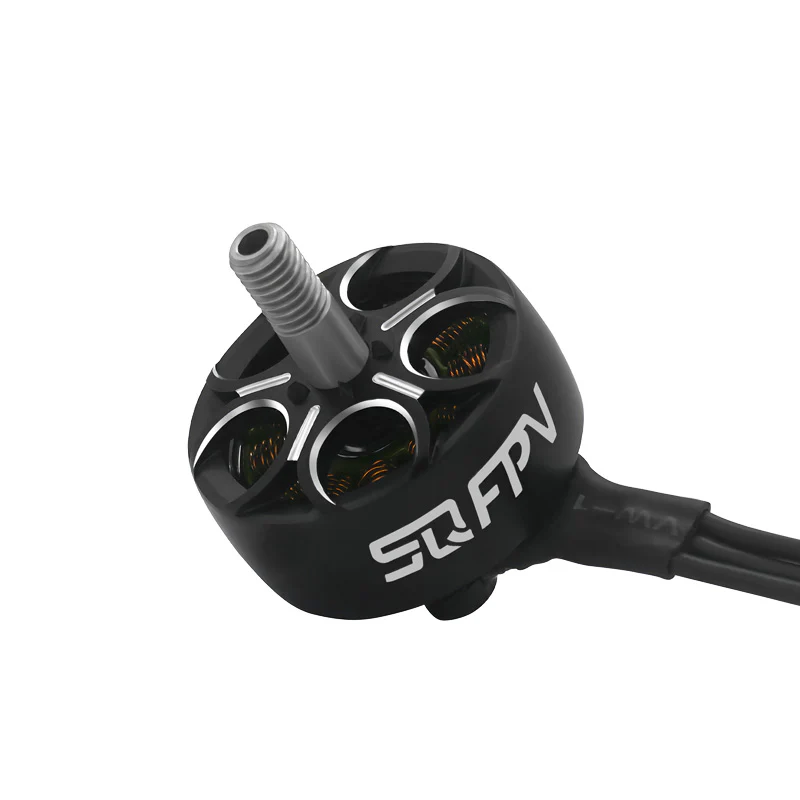

SEQURE S2207 - 6S 2100KV BLDC brushless motor
ID: 1205245
zł93.53
Tax included
zł76.04 tax excl.
A brushless FPV motor designed for racing and long-range applications, offering high efficiency and dynamic throttle response. Its 22x7mm 12N14P design with high-quality copper windings and a 14-pole rotor ensures stable and smooth operation under heavy loads. The motor operates in the 4-6S LiPo/LiHV range, reaching a maximum power of 1134W and a current of up to 45A, allowing for aggressive flights while maintaining reliability. SEQURE S2207
Description
SEQURE S2207 BLDC 6S 2100KV is a brushless motor designed for FPV drones, developed for both racing and long-range applications. The motor design is optimized for high efficiency and strong torque, resulting in dynamic and stable performance across the entire RPM range. The 22×7 mm 12-slot stator, combined with high-purity copper windings, ensures high power density and fast throttle response.
The motor uses a 14-pole high thermal resistance magnet system, providing smooth operation and high torque output. The housing is made of CNC-machined aviation-grade aluminum, offering excellent rigidity and efficient heat dissipation. A precisely engineered air gap improves efficiency and reduces energy losses. The motor is equipped with a 5 mm stainless steel shaft, increasing mechanical durability under load. High-quality bearings ensure long service life and smooth, quiet operation even at high RPM.
The 2100KV version is optimized for 4–6S LiPo/LiHV setups, delivering a highly responsive and powerful flight characteristic. SEQURE S2207 is a solution for pilots seeking power, efficiency, and reliability in demanding FPV conditions.
Features
- Model: S2207
- KV rating: 2100KV
- Winding configuration: 12N14P
- Stator size: 22 × 7 mm
- Shaft diameter: 5 mm
- Silicone wires: 20 AWG, 150 mm length
- No-load current (10V): 1.2 A
- Operating voltage: 4–6S LiPo/LiHV
- Test voltage: 25.2 V
- Maximum current: 45 A
- Maximum power: 1134 W
- Motor weight (with wires): 35 g
Kit contains
- SEQURE S2207 motor
- M5 self-locking nut
- 5 × M3 × 8 mm screws (rounded head, hex)
1205245
Data sheet
- Rotation speed
- Inna
- Diameter
- 22 mm
- Power supply voltage
- 22,2 V
- Height
- 7 mm
- Weight
- 35 g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
