ID: 1200584
5902186331532
zł2.90
Tax included

zł2.36 tax excl.

A set of 30 bistable DPDT switches with compact dimensions and a self-locking mechanism, designed for measuring devices, controllers, and electronic projects requiring reliable switching of two signal paths.

24h
Available
Available quantity: 10

Description

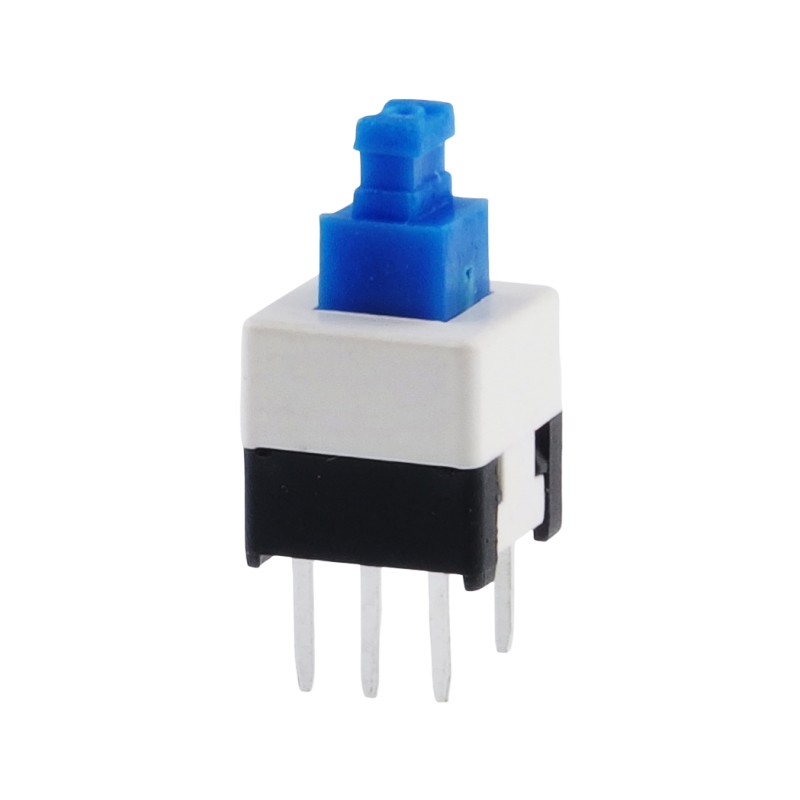

Miniature bistable DPDT (Double Pole Double Throw) button with dimensions of 7×7×12 mm, designed for installation in electronic devices, multimeters, control panels, and prototypes. The self-locking mechanism design allows the state to be maintained after pressing. The button has 6 terminals enabling the switching of two independent circuits. Suitable for operation at temperatures from –40°C to +70°C, with a lifespan of up to 100,000 cycles.

Features

  • Switch type: bistable, DPDT (6 pins)
  • Dimensions: 7×7×12 mm
  • Load capacity: 0.3 A / 60 V AC or 1.5 A / 25 V AC
  • Contact resistance: ≤ 0.02 Ω
  • Insulation resistance: > 100 MΩ
  • Dielectric strength: 250 V AC (50 Hz) / 1 min
  • Switching force: 100–350 g
  • Operating temperature: –40°C to +70°C
  • Lifespan: 100,000 cycles

Included

  • 30 × bistable button 7×7×12 mm, 6 pins DPDT
1200584

Data sheet

Diameter
Inna
Colour
Blue
Materiał
Plastik
Switch type
Self-locking
Backlight
No
