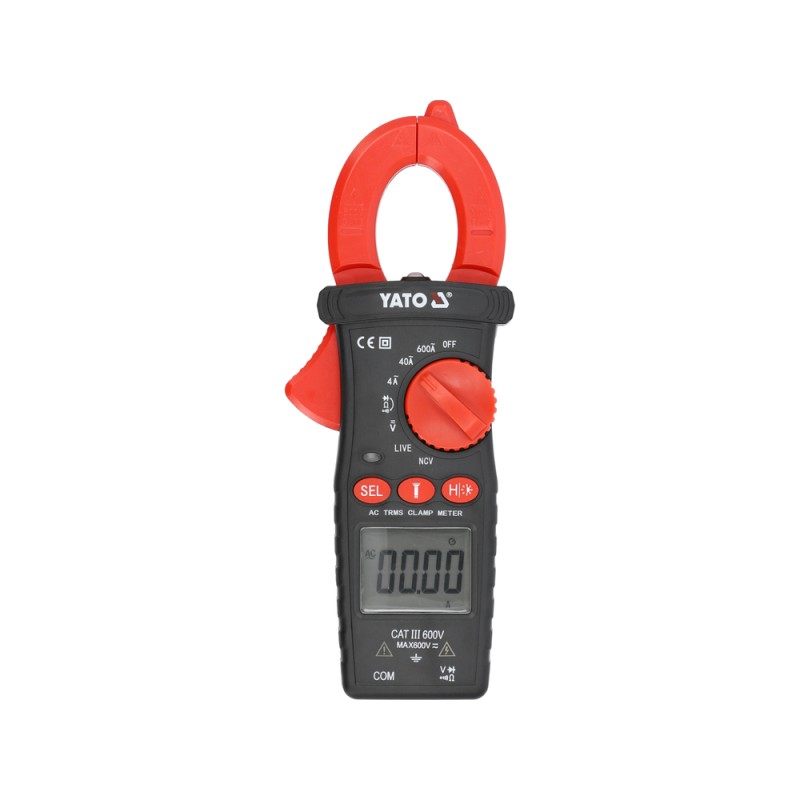

YT-730935 – device (front view)
search
  • YT-730935 – device (front view)
  • YT-730935 – device (bottom view)
  • YT-730935 – device (top view)
  • YT-730935 – clamp meter with test leads
  • YT-730935 – test leads
  • YT-730935 – complete set in carrying case
  • YT-730935 – closed carrying case with full set
ID: 1202869
5906083108198
zł51.35
Tax included

zł41.75 tax excl.

True RMS clamp meter Yato YT-730935 is a universal measuring instrument with automatic range selection, designed for measuring AC/DC voltage, AC current up to 600A using a clamp method, resistance, and basic electrical tests. The device is equipped with True RMS measurement, NCV function, Data Hold, a backlit LCD display, and an integrated LED flashlight. YATO YT-730935

24h
Available
Available quantity: 2

Description

The YT-730935 is a clamp meter designed for electrical measurements without disconnecting the circuit. It enables non-contact measurement of alternating current using clamp jaws, significantly improving safety during diagnostics of live electrical installations and AC-powered devices. The use of True RMS technology ensures accurate measurement of effective voltage and current values, even for non-sinusoidal waveforms.

The meter also allows measurement of AC and DC voltage as well as resistance, and supports diode testing and continuity testing with audible indication. A clear LCD display improves readability, while additional functions support installation, service, and inspection work. The YT-730935 is suitable for electrical installations, technical services, maintenance operations, and assembly work requiring fast and safe AC current measurement.

Features

  • Device type: Universal clamp meter
  • Housing material: ABS
  • Measurement technology: True RMS
  • Range selection: Automatic
  • Display type: LCD
  • Display count: 3999
  • Backlight: Yes
  • LED flashlight: Yes
  • Data Hold function: Yes
  • Audible signal: Yes
  • Automatic power-off: Yes (after approx. 20 minutes)
  • Low battery indicator: Yes
  • Electrical Functions
    • AC voltage measurement: 0–600V AC, True RMS (40–1000Hz)
    • DC voltage measurement: 0–600V DC
    • AC current measurement (clamp): 0.001–600A AC, True RMS
    • Resistance measurement: 0.1Ω – 40MΩ
    • Diode test: Yes (IF 1mA, UR 2.3V)
    • Continuity test: Yes (audible signal below 50Ω)
    • Conductivity test: Yes
    • Non-contact voltage detection (NCV): Yes
    • Live wire detection (LINE): Yes
  • Mechanical and Environmental Parameters
    • Maximum jaw opening: 26mm
    • Maximum conductor diameter: 26mm
    • Dimensions: 185 × 71 × 35mm
    • Weight: 0.15kg
    • Operating temperature range: 0–40°C
    • Storage temperature: -10°C to +50°C
    • Operating humidity: <75% RH
  • Power Supply
    • Power source: Battery powered
    • Battery type: 2 × 1.5V AAA
  • Applications
    • Electrical measurements
    • Electrical installation diagnostics
    • Service and maintenance work
  • Manufacturer Information
    • Brand: Yato
    • Manufacturer code: YT-730935
    • EU responsible entity: TOYA S.A.

Kit Includes

  • 1× True RMS clamp meter AC 600A YT-730935
  • 1× Set of test leads
  • 1× Carrying case for meter and leads
1202869

Data sheet

Upper DC voltage range
400 mV/4 V/40 V/400 V/600 V
Upper AC voltage range
4 V/40 V/400 V/600 V
Upper DC current range
No
Upper AC current range
600 A
Upper resistance range
400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ
Upper capacitance range
No
Frequency range
40 Hz - 1 KHz
Temperature measurement
No
Range adjustment
Automatic
True RMS
Yes
Hold function
Yes
Continuity tester
Yes
Diode tester
Yes
Transistor hFE measurement
No
Buzzer
Yes
Battery indicator
Yes
Automatic shut-off
Yes
Display backlight
Yes
Battery type
Other
Length
185 mm
Width
71 mm
Thickness
35mm
Weight
150 g
