SMA male connector
ID: 1184979
5906623483341
zł3.83
Tax included
zł3.11 tax excl.
The SMA male connector is a durable and reliable coaxial connector with high strength and a wide range of applications
Description
The SMA male connector is a widely used small coaxial connector with threaded connections. It features inch threaded connections, high strength, and good shock resistance. The outer conductor design terminates in direct contact, which minimizes insertion loss. SMA connectors are ideal for applications in antennas, data transmission, radios, test equipment, and serial digital and analog interfaces.
Features
- Impedance: 50 Ω
- Frequency range: 0-4 GHz with low reflection
- Rated voltage: 500 volts peak
- Dielectric withstand voltage: 1,500 volts RMS
- VSWR:
- M39012 straight connectors: 1.3 max 0-4 GHz
- M39012 angled connectors: 1.35 max 0-4 GHz
- Contact resistance:
- Central contact: ≤ 3mΩ
- Outer contact: ≤ 2mΩ
- Insulation resistance: 5,000 MΩ
- Durability: 500 cycles
- Applicable standards: IEC169-15, MIL-C-39012
- Contact: Brass, gold-plated
- Insulator: PTFE
- Crimped fittings: copper/brass
1184979
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
The adapter allows you to connect the antenna with the SMA 50 Ω female connector to the device with the uFL socket (also known as u.FL, IPEX, IPAX, IPX, MHF, AM). The cord has a length of 20cm.
zł8.66
24h
Available quantity: 146
Available
The BNC to 4mm Banana Adapter allows you to easily connect BNC cables to banana connectors, often used in laboratories and measurement equipment. Ideal for testing, calibration and laboratory applications.
zł14.59
24h
Available quantity: 17
Available
The adapter allows you to connect the antenna with a standard 75 Ω connector to the device with the MCX connector. The cable length is 13cm, it is often used in USB DVB-T tuners
zł5.85
24h
Available quantity: 22
Available
This straight SMA female PCB connector with 50Ω impedance provides a stable RF connection at frequencies up to 6 GHz. The four-pin design ensures secure PCB mounting even in harsh environments. The connector is suitable for antenna systems, radio modules, and RF amplifiers. conSMA-F
zł2.03
4 weeks
No product available!
The adapter allows you to connect the antenna with the male BNC connector to the device with the MCX socket. The cord has a length of 13cm
zł8.91
4 weeks
No product available!
Adapter to attach an antenna with RP SMA 50Ω male connector to a device with u.FL socket. SparkFun WRL-18569
zł16.76
24h
Available quantity: 5
Available
The SMA female connector is a durable and reliable coaxial connector with high strength and a wide range of applications
zł3.75
24h
Available quantity: 33
Available
The MCX male to SMA female adapter is an indispensable component that allows you to connect telecommunications devices with various types of connectors, ensuring a stable and secure connection
zł7.40
4 weeks
No product available!
Adapter from BNC male connector to terminal spring connector
zł3.51
24h
Available quantity: 5
Available
SMA female connector designed for PCB mounting. It has an impedance of 50 Ω, dedicated to antennas with a male SMA connector
zł2.20
24h
Available quantity: 22
Available
Adapter with SMA male connector on both ends. Allows the conversion of a female SMA connection with standard polarity to a male one. SparkFun WRL-21225
zł21.59
24h
Available quantity: 1
Available
The adapter allows you to connect the antenna with the RP SMA 50 Ω female connector to the device with the uFL socket (also known as u.FL, IPEX, IPAX, IPX, MHF, AM). The cord has a length of 20cm
zł5.47
4 weeks
No product available!
MCX male cable adapter to connect FME male to an irreplaceable component that allows you to connect telecommunication devices with connector types, additional add-on and add-on
zł13.92
24h
Available quantity: 9
Available
The adapter allows you to connect the antenna with the SMA 50 Ω male connector to the device with the MCX socket. The cord has a length of 13cm
zł10.33
24h
Available quantity: 10
Available

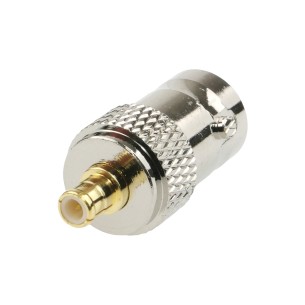

BNC Socket to MCX Plug Adapter allows connecting probes with a BNC tip to oscilloscopes with an MCX socket, such as FNIRSI models. With an impedance of 50 Ω, it ensures compatibility with most measurement and RF systems, facilitating the integration of measuring equipment in an electronics workshop.
