This motherboard for 3D printers allows for simultaneous control of up to eight axes, ideal for multi-color printing, tool changing, and laser work. Equipped with a 32-bit ARM Cortex-M7 STM32H723ZET6 processor, it offers high performance and stability. The board supports popular firmware such as Klipper, Marlin, and RepRap, and is compatible with Raspberry Pi and Octoprint. BigTreeTech BTT Octopus Pro V1.1

4 weeks
Awaiting delivery
Kamami is the official distributor of advanced 3D printing controllers and BigTreeTech accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

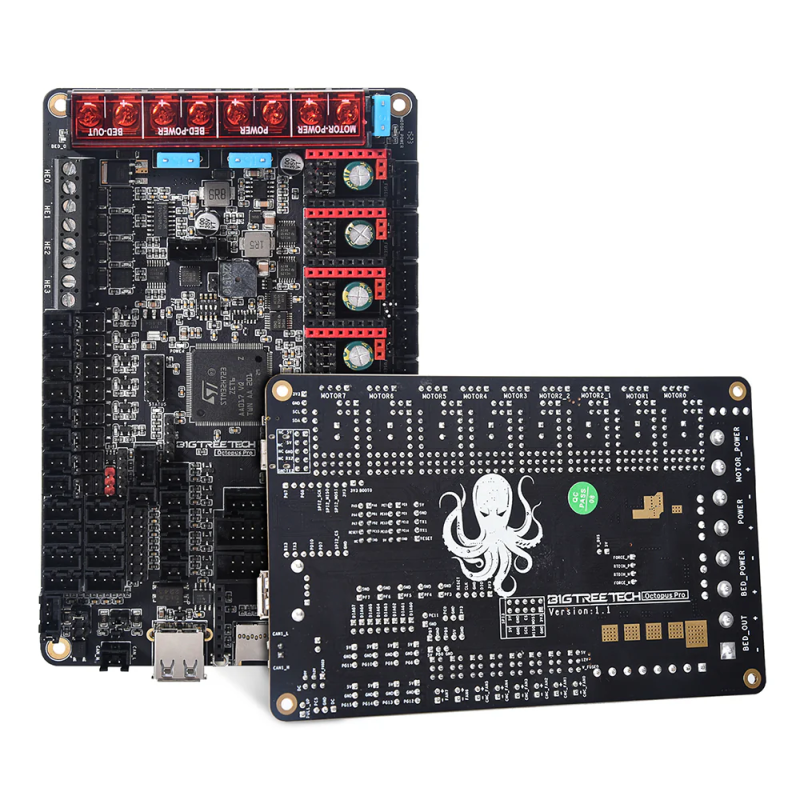

The BIGTREETECH Octopus Pro V1.1 motherboard is an advanced solution for 3D printers, offering full support for eight stepper motor drivers, allowing control of up to eight axes simultaneously. It is ideal for multi-color printing, tool changes, and applications such as laser engraving and cutting. Equipped with a 32-bit ARM Cortex-M7 STM32H723ZET6 processor clocked up to 550 MHz, it provides high performance and operational stability. The board is compatible with Klipper, Marlin, and RepRap firmware and supports integration with Raspberry Pi and OctoPrint, increasing its versatility in 3D printing projects.


The Octopus Pro supports high voltage up to 60 V for stepper motor drivers, with individual voltage adjustment for each driver. The board features a built-in MAX31865 chip, enabling precise handling of PT100 and PT1000 thermistors, and offers six PWM-controlled fan ports, two standard ports, and selectable fan voltages (5 V or 12 V). Octopus Pro provides support for TFT, LCD12864, and LCD2004 displays, as well as integration with CAN BUS, SPI, and I2C interfaces for expansions. It includes a USB-C port, dual Z-axis connectors, four heater ports, and support for ESP8266-based WiFi modules. With these features, the motherboard ensures full control over complex 3D printing projects, offering high flexibility and reliability.

Features

  • Processor: ARM Cortex-M7 STM32H723ZET6
  • Mainboard power supply: DC 15 to 28 V
  • Heated bed power supply: 12 V or 24 V
  • Logic voltage: 3.3 V
  • Support for heated bed/heaters
  • Stepper motor support
  • Fan voltage: 5 V, 12 V
  • Supported stepper drivers: TMC2209, TMC5160, etc.
  • Driver operating voltage: 12 to 60 V
  • Driver operation modes: SPI, UART, STEP/DIR
  • Temperature sensor support: 5x 100K NTC
  • Display compatibility: TFT, LCD12864, LCD2004, etc.
  • Supported firmware: Klipper, Marlin, RRF
  • Recommended slicers: Cura, Simplify3D, Pronterface, Repetier-Host, Makerware
  • Support for 6 controlled fans and 2 standard fans
  • Firmware update: Klipper/Marlin/RRF, DFU mode
  • Support for BL Touch and bed leveling sensors
  • High-quality level conversion ICs
  • Board dimensions: 160 x 100 mm
  • Mounting dimensions: 150 x 90 mm

Kit contains

  • BIGTREETECH Octopus Pro V1.1 motherboard
  • USB-C cables for computer connection
  • Mounting hardware and jumpers
