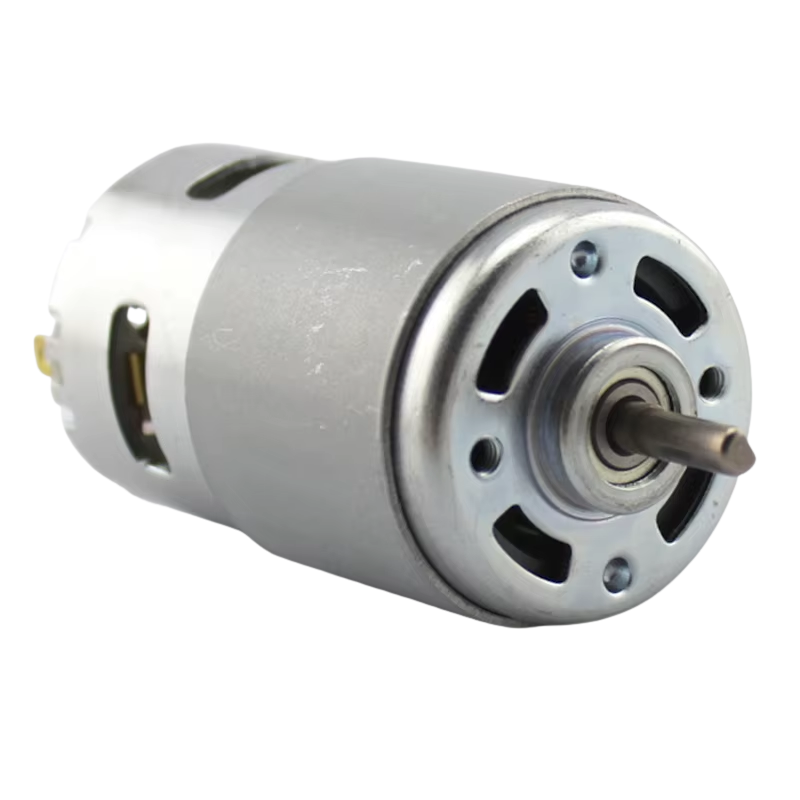

Main view
search
  • Main view
  • Main view (rotated motor)
ID: 1199862
zł52.34
Tax included

zł42.55 tax excl.

RS-795 brushed DC motor designed for drive systems requiring relatively high rotational speed and power. It operates from 12-24 V DC, reaching approximately 8000 RPM at 12 V and 16000 RPM at 24 V. The 5 mm D-shaped shaft facilitates mounting pulleys, couplings, and other drive components. RS-795

24h
Available
Available quantity: 6

Description

The motor uses a conventional permanent-magnet brushed DC design and can be used in robotic drives, power tools, RC models, and other mechanical systems. The specified version features a 5 mm shaft with a length of approximately 15.5 mm, a body diameter of approximately 42 mm without the outer coating, and a body length of approximately 70.5 mm. The motor reaches approximately 16000 RPM at 24 V and approximately 8000 RPM at 12 V.

Features

  • Model: RS-795
  • Type: brushed DC motor
  • Construction: permanent magnet
  • Bearings: dual ball bearings
  • Cooling: built-in fan
  • Rated voltage: 12 V DC
  • Operating voltage range: 12-24 V DC
  • No-load speed at 12 V: approx. 8000 RPM
  • No-load current at 12 V: approx. 0.9 A
  • Stall current at 12 V: approx. 3.34 A
  • No-load speed at 24 V: approx. 16000 RPM
  • No-load current at 24 V: approx. 1.2 A
  • Stall current at 24 V: approx. 3.75 A
  • Shaft diameter: 5 mm
  • Output shaft length: approx. 15.5 mm
  • Shaft type: D-shaped
  • Flat depth: 1.5 mm
  • Flat length: 13 mm
  • Body diameter: approx. 42 mm
  • Body diameter with outer coating: approx. 44.5 mm
  • Body length: approx. 70.5 mm
  • Mounting hole spacing: approx. 29 mm
  • Mounting holes: 2 x M4
  • Front boss diameter: 17.5 mm
  • Front boss height: 4.5 mm
  • Rear shaft length: approx. 4 mm
1199862

Data sheet

DC motor power
Other
Gear ratio
Brak przekładni
Gear material
Brak przekładni
Rotation speed
16000 RPM
Shaft diameter
5 mm
Shaft shape
D
Obustronny wał silnika
Tak
Power supply voltage
12 V - 24 V
