Battery Charge Indicator with Segment Display 1S–8S
search
  • Battery Charge Indicator with Segment Display 1S–8S
  • Battery Charge Indicator with Segment Display 1S–8S
  • Battery Charge Indicator with Segment Display 1S–8S
  • Battery Charge Indicator with Segment Display 1S–8S
  • Battery Charge Indicator with Segment Display 1S–8S
ID: 1196837
5902186302297
zł4.67
Tax included

zł3.80 tax excl.

A compact charge level indicator for lithium-ion batteries, offering a clear voltage readout on a segment display. The ability to support 1 to 8 cells in series makes it a versatile diagnostic tool for electronic projects, backup power systems, and mobile applications. With easy installation and a clear LED indicator system, the module simplifies real-time monitoring of energy levels in your system.

24h
Available
Available quantity: 8

Description

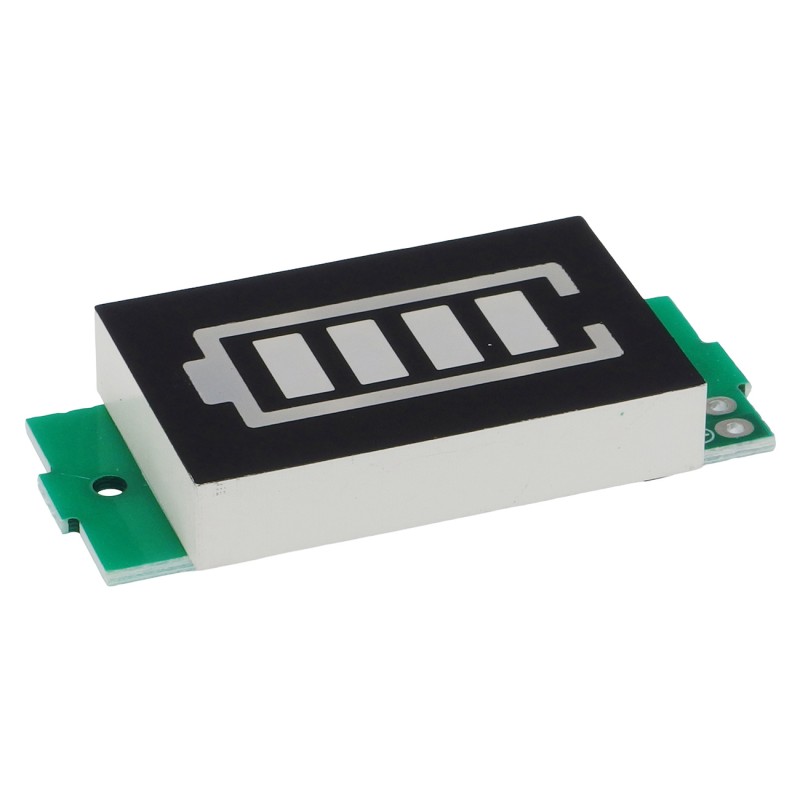

The module is designed to monitor the charge level of lithium-ion batteries in configurations from 1S to 8S. Equipped with a segment LED display, it visually indicates battery charge status via four blue blocks with a red outline. The number of illuminated segments corresponds to the output voltage level, allowing for a quick estimation of the remaining operating time. The unit is intended for direct connection to the battery terminals, and the appropriate solder pads (S1–S8) allow adjustment of the module to the number of cells in series.

Specifications

  • Battery type: Lithium-ion (1S–8S)
  • Power supply: Directly from the measured battery
  • Voltage range: Up to 4.3 V per cell (max. 4.3 × N)
  • Display: 4-segment LED display
  • Display color: Blue blocks with red outline
  • Operation principle:
  • N × 3.3 V – 1 segment
  • N × 3.5 V – 2 segments
  • N × 3.7 V – 3 segments
  • N × 3.9 V – 4 segments
  • < N × 3.3 V – display off
  • Configuration: By shorting appropriate S1–S8 pads
  • Applications: RC modeling, DIY battery systems, battery testers
