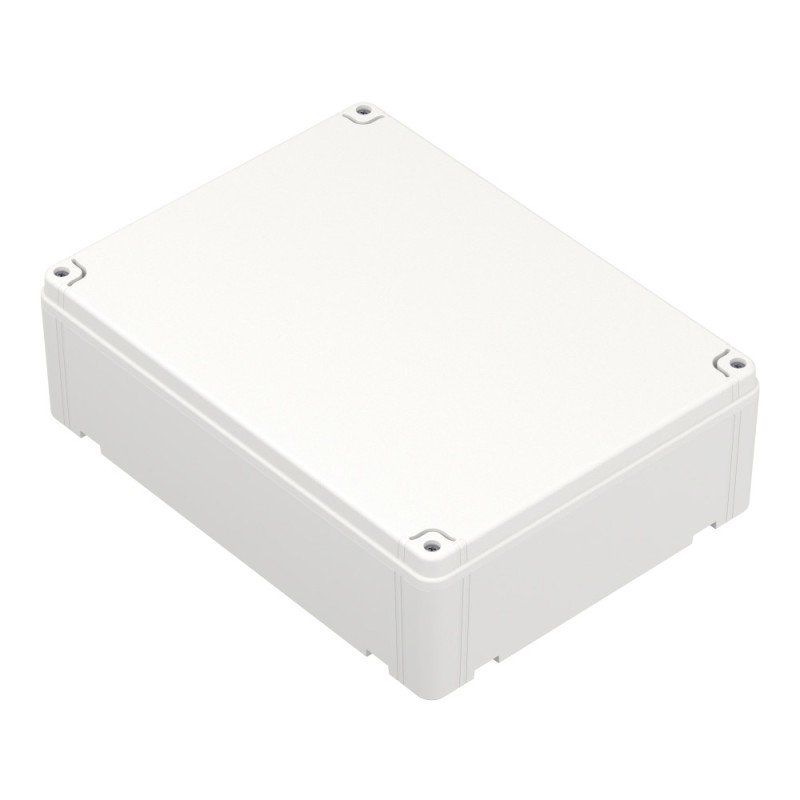

Kradex ZP400.300.120Sb-IP67 TM PC - IP67 Polycarbonate Hermetic Enclosure 400 x 300 x 122.6 mm
ID: 1208691
zł223.74
Tax included
zł181.90 tax excl.
Hermetic enclosure made of white polycarbonate (PC), designed to protect electronics, control equipment, and installation components against dust, water, and mechanical impact. The -IP67 TM version features a cast polyurethane gasket and brass threaded inserts, providing IP67 protection and IK07 impact resistance. Kradex ZP400.300.120Sb-IP67 TM PC
Description
The ZP400.300.120Sb-IP67 TM PC enclosure is designed for devices requiring sealed protection of electronics against water and dust. The body and solid cover are made of white RAL 9003 polycarbonate (PC). The cast polyurethane gasket provides an IP67 protection rating, while the enclosure meets the IK07 impact resistance rating. The external dimensions are 400 x 300 x 122.6 mm.
The TM version features brass threaded inserts in the mounting posts, providing durable mounting points for components installed inside the enclosure. The cover is secured with four captive M5x30/12 screws. ZWM10 brackets for wall mounting are also included. The enclosure can be used in automation installations, control equipment, measurement systems, and industrial electronics requiring increased protection against environmental conditions.
Features
- Type: full hermetic enclosure
- Series: ZP
- Material: polycarbonate (PC)
- Color: white RAL 9003
- Cover type: solid
- Ingress protection rating: IP67
- Impact resistance rating: IK07
- Gasket: cast polyurethane
- Brass threaded inserts: yes
- Height: 122.6 mm
- Width: 300 mm
- Length: 400 mm
- Cover screws: M5x30/12, captive
- Compliance: RoHS, REACH
Kit includes
- Kradex ZP400.300.120Sb-IP67 TM PC enclosure
- M5x30/12 screw: 4 pcs.
- ZWM10 wall mounting brackets: 1 set
1208691
Data sheet
- Colour
- White
- Materiał
- PC
- Hermetyczna
- Tak
- Brass bushings
- Tak
- Tightness class
- IP67
- Strength class
- IK07
- Length
- 400 mm
- Width
- 300 mm
- Height
- 122,6 mm
- Housing type
- On the wall
- Flammability class
- none
