- New
Blower fan Sunon EF50151B1-1B00U-A99 DC 12V
ID: 1198655
5902186328969
zł53.81
Tax included
zł43.75 tax excl.

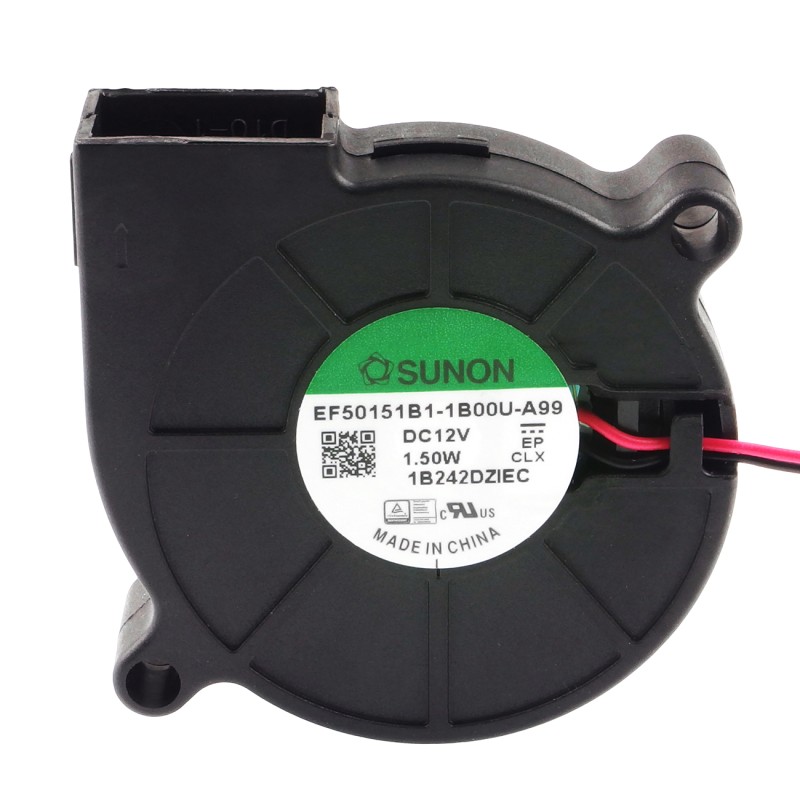

DC blower fan Sunon EF50151B1-1B00U-A99 with dimensions 51.6×51.7×15 mm and an airflow of 7.64 m³/h is used for cooling electronic systems, offering reliability thanks to a brushless motor, ball bearing, and auto-restart function.
Description
Sunon EF50151B1-1B00U-A99 blower fan with a DC brushless motor designed for intensive cooling of electronic systems in confined spaces. Operates within a voltage range of 4.5–13.8 V DC, with a nominal voltage of 12 V DC. The ball bearing design and auto-restart function ensure reliability and extended service life. The housing and impeller are made of flame-retardant thermoplastic compliant with UL94V-0 flammability class. The fan delivers up to 7.64 m³/h airflow at a noise level of 41 dBA and a speed of 5200 rpm. It is used in power supplies, industrial equipment, and electronic component cooling systems.
Properties
- Type: DC, blower
- Operating voltage: 4.5–13.8 V DC
- Nominal voltage: 12 V DC
- Power consumption: 1.28 W
- Rated current: 106 mA
- Current and power tolerance: ±15%
- Airflow: 7.64 m³/h
- Noise level: 41 dBA
- Rotational speed: 5200 rpm
- Bearing type: ball bearing
- Impeller and housing material: thermoplastic
- Insulation class: A
- Insulation resistance: ≥10 MΩ
- Operating temperature: -10°C to +70°C
- Flammability class: UL94V-0
- Additional function: auto-restart
- Leads: 2 wires, 305 mm length
- Dimensions: 51.6 × 51.7 × 15 mm
- Gross weight: 28.9 g
1198655
Data sheet
- Voltage
- 12 V
- Power
- 1,28 W
- Length
- 51,6 mm
- Width
- 51,7 mm
- Height
- 15 mm
- Weight
- 28,9 g
- Noise level
- 41 dBA
- Air flow efficiency
- 7,64 m³/h
- Rated current
- 106 mA
- Fan type
- Blower
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
