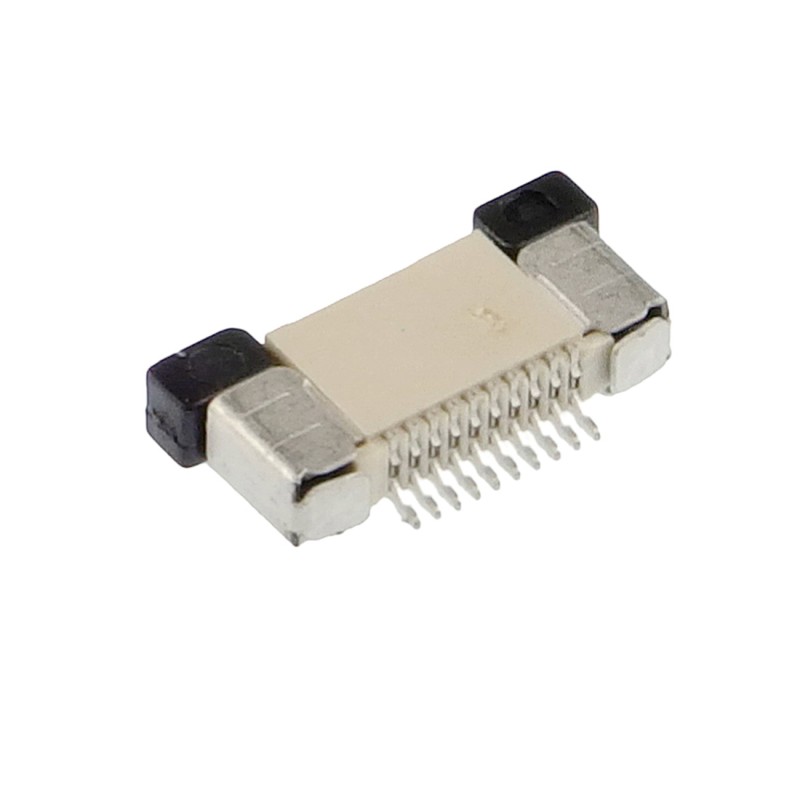

Female ZIF FFC/FPC connector, 0.5mm pitch, 10pin, bottom Ccontact, horizontal orientation
ID: 572708
5902186301276
zł1.89
Tax included
zł1.54 tax excl.
The is a 10-pin horizontal ZIF (Zero Insertion Force) connector designed for surface-mount (SMD) applications. It features bottom contacts and supports a current of up to 0.5 A, making it suitable for applications requiring reliable connections in compact electronic devices.
Description
The FFC/FPC is a 10-pin ZIF (Zero Insertion Force) connector designed for surface-mount (SMD) applications with a 0.5 mm pitch. It supports a maximum current of 0.5 A and a voltage of up to 50 V. The bottom contacts, made of phosphor bronze, ensure reliable connections with low contact resistance (maximum 30 mΩ). The connector complies with UL94V-0 and ECE R-118 flammability standards and operates in a temperature range of -25°C to 85°C, making it suitable for a wide range of applications, including electronic devices and automotive systems.
Features
- Connector Type: FFC/FPC
- Number of Pins: 10
- Mounting: SMD (Surface-Mount Device)
- Maximum Current: 0.5 A
- Contact Material: Phosphor bronze
- Maximum Contact Resistance: 30 mΩ
- Operating Temperature: -25°C to 85°C
- Tape Pitch: 0.5 mm
- Maximum Voltage: 50 V
572708
Data sheet
- Pitch
- 0,5 mm
- Number of pins
- 10
- Contact type
- Bottom
- Spatial orientation
- Horizontal
