FIBER OPTIC PATCHCORD SM LC/UPC-SC/APC DUPLEX 1M LSZH G657A1 3.0MM YELLOW LANBERG
search
  • FIBER OPTIC PATCHCORD SM LC/UPC-SC/APC DUPLEX 1M LSZH G657A1 3.0MM YELLOW LANBERG
  • FIBER OPTIC PATCHCORD SM LC/UPC-SC/APC DUPLEX 1M LSZH G657A1 3.0MM YELLOW LANBERG
  • FIBER OPTIC PATCHCORD SM LC/UPC-SC/APC DUPLEX 1M LSZH G657A1 3.0MM YELLOW LANBERG
  • FIBER OPTIC PATCHCORD SM LC/UPC-SC/APC DUPLEX 1M LSZH G657A1 3.0MM YELLOW LANBERG
  • FIBER OPTIC PATCHCORD SM LC/UPC-SC/APC DUPLEX 1M LSZH G657A1 3.0MM YELLOW LANBERG
ID: 1195957
5901969439960
zł12.68
Tax included

zł10.31 tax excl.

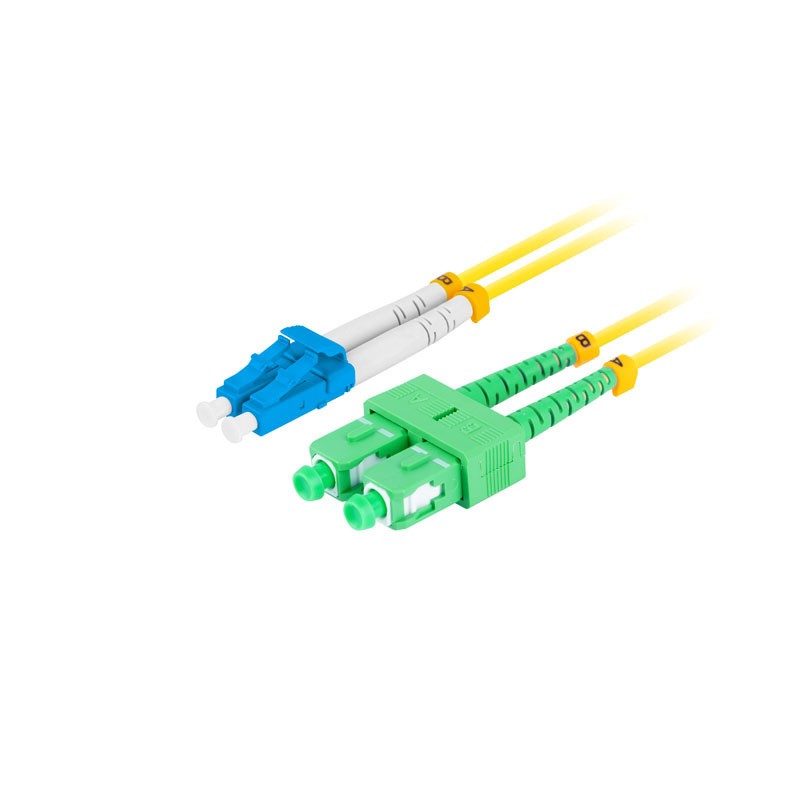

The single-mode (SM) fiber optic patchcord with LC and SC connectors in a duplex configuration is a high-quality cable designed for fast and reliable data transmission in fiber optic networks. Made with G657A1 fiber and featuring an LSZH jacket, it ensures low attenuation and high bending resistance, making it ideal for telecommunications, data centers, and other professional network installations. FO-LUSA-SD11-0010-YE

24h
Available
Available quantity: 4

Description

The single-mode (SM) fiber optic patchcord with LC and SC connectors in a duplex configuration is a high-quality cable designed for fast and reliable data transmission in fiber optic networks. Made with G657A1 fiber and featuring an LSZH jacket, it ensures low attenuation and high bending resistance, making it ideal for telecommunications, data centers, and other professional network installations.

Specifications

  • Connectors: LC, SC
  • Cable length: 1 m
  • Polishing standard: UPC, APC
  • Fiber type: G657A1
  • Optical fiber type: Single-mode
  • Fiber diameter: 9/125 µm
  • Cable construction: Duplex
  • Cable diameter: 3 mm
  • Jacket material: LSZH (Low Smoke Zero Halogen)
  • Insertion loss: ≤ 0.2 dB
  • Return loss: ≥ 60 dB
  • Recommended ambient temperature: -40 to 85 °C
  • Minimum bending radius: 10 mm
  • Color: Yellow
1195957

Data sheet

Cable length (m)
1m
Colour
Yellow
Optic fiber connector
LC, SC
Optic fiber type
Single-mode
Cable construction
DUPLEX
Polishing standard
UPC, APC

Manufacturer IMPAKT SPÓŁKA AKCYJNA Stanisława Lema 16 62-050 Mosina Poland zgody@impakt.com.pl

Responsible person IMPAKT SPÓŁKA AKCYJNA Stanisława Lema 16 62-050 Mosina Poland formularz kontaktowy na stronie osoby odpowiedzialnej
