Altera 10M08DAF256C7G

Description

The 10M08DAF256C7G is a high-performance Field Programmable Gate Array (FPGA) from the MAX® 10 series by Altera (now Intel). Designed for flexibility and integration, it provides 8000 logic elements, 387072 bits of RAM, and supports up to 178 I/O pins, making it suitable for industrial, communication, and embedded system applications.

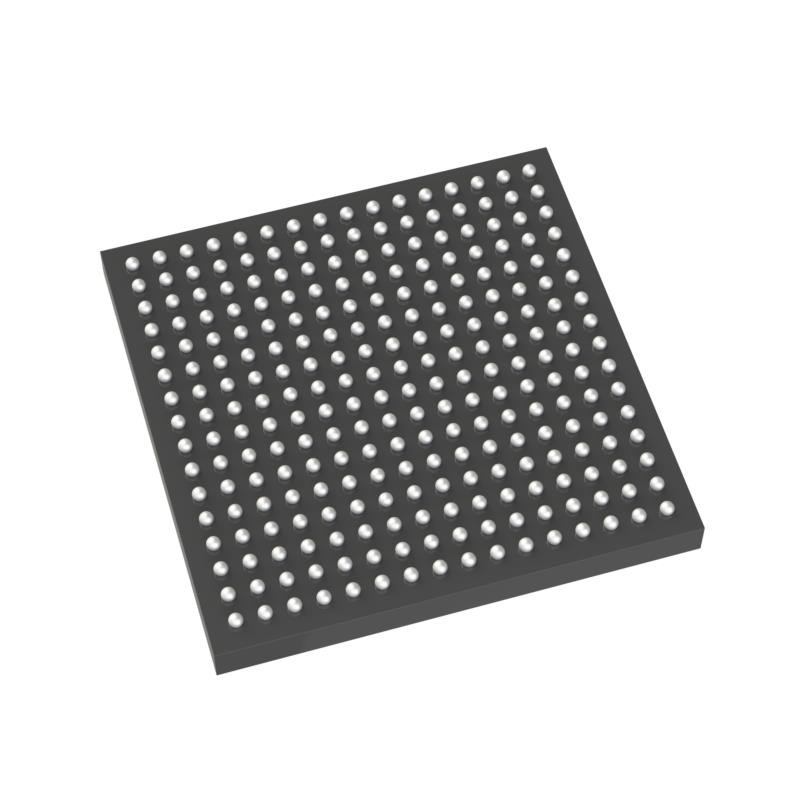

The device comes in a 256-FBGA (17×17 mm) package and is intended for surface mount (SMD) applications. It operates in a voltage range of 1.15 V to 1.25 V, with a junction temperature range of 0°C to 85°C, ensuring reliable operation in standard environments.

Features

• Manufacturer: Altera (Intel)
• Part number: 10M08DAF256C7G
• Device type: FPGA
• Series: MAX® 10
• Logic elements: 8000
• Logic array blocks (LAB/CLB): 500
• Total RAM: 387072 bits
• Number of I/Os: 178
• Supply voltage: 1.15 V – 1.25 V
• Operating temperature: 0°C ~ +85°C (Tj)
• Package: 256-LBGA
• Supplier package: 256-FBGA (17 × 17 mm)
• Mounting type: Surface mount (SMD)
