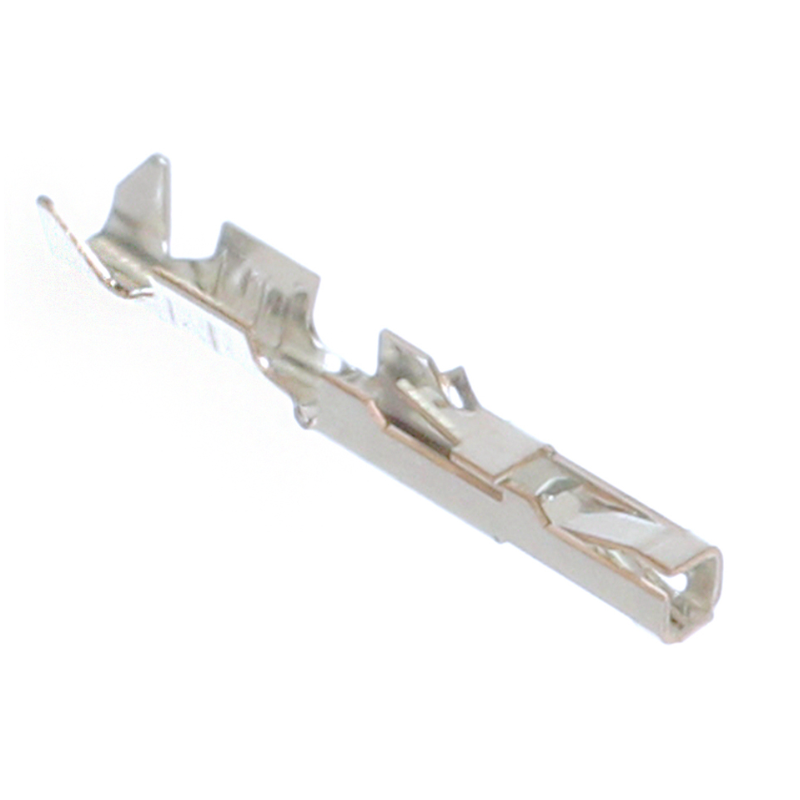

Tin-plated Female Crimp Contact Strip, Bulk
ID: 565590
5902186314726
zł0.91
Tax included
zł0.74 tax excl.
Female contact MOLEX 901192109, designed to work with 24–22 AWG wires within the C-Grid III connector system, offers reliable electrical connections with a maximum load of 3 A. The tin-plated contact surface and crimping installation make it a suitable choice for industrial projects, prototypes, and workshop applications. Supplied in bulk, it is well-suited for flexible assembly systems.
Description
Female contact for the C-Grid III connector system by Molex, intended for 24–22 AWG wires. Electrical connection is made by crimping, allowing for quick, durable, and solderless assembly. The component is supplied in bulk, facilitating use in serial production and individual projects. The contact surface is tin-plated, ensuring good electrical conductivity and corrosion resistance. The contact is rated for operation with currents up to 3 A, suitable for signal transmission and power supply in electronic devices, automation, and embedded systems.
Specifications
- Connector type: pin headers
- Connector type: contact
- Contact type: female
- Contact plating: tin-plated
- Wire gauge: 24–22 AWG
- Packaging type: bulk
- Electrical mounting: crimped
- Maximum current: 3 A
- Manufacturer series: C-Grid III
- Gross weight: 0.074 g
565590
Data sheet
- Rodzaj goldpinu
- Styk przewodu
- Rodzaj złącza
- Żeńskie
- Pitch
- 2,54 mm
- Liczba rzędów
- 1
- Liczba pinów
- 1
- Colour
- Srebrny
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
