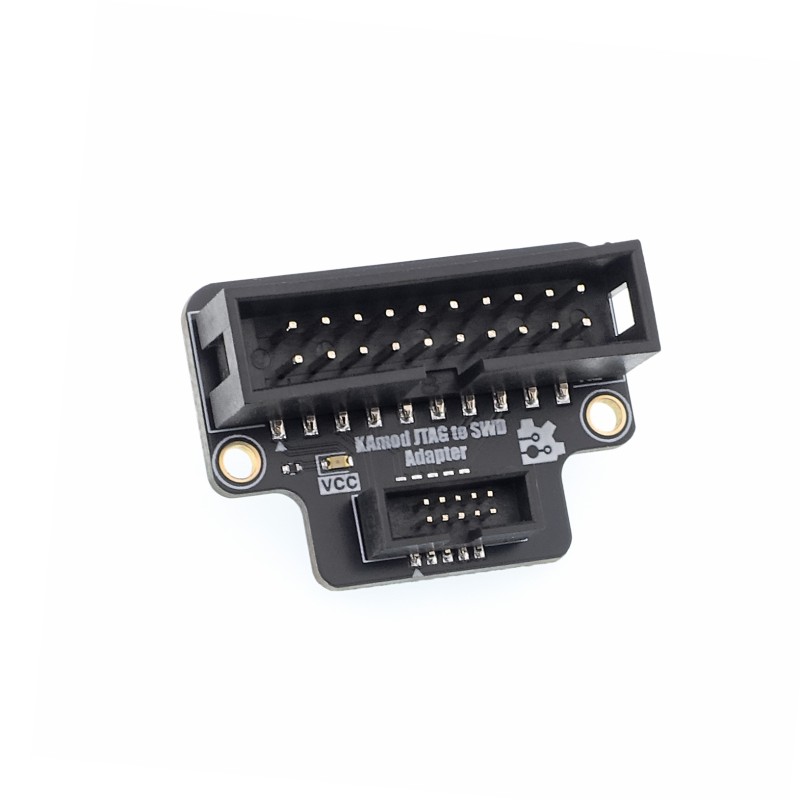

KAmod JTAG to SWD Adapter – JTAG to SWD Connector Adapter
ID: 1199244
zł17.12
Tax included
zł13.92 tax excl.
The KAmod JTAG to SWD Adapter provides a convenient interface between JTAG and SWD standards. Suitable for development and debugging environments requiring cross-compatibility between connector types.
Description
A compact adapter that converts a standard JTAG connector (2×10, 0.1"/2.54 mm pitch) to a narrower SWD connector (2×5, 0.05"/1.27 mm pitch). Designed for use in applications where a programmer/debugger with a 2×10 JTAG interface needs to connect to a board or development kit with a 2×5 SWD interface, or vice versa. The module includes an LED that indicates the presence of power on the VCC line.
Note
Cables are not included.
Features
- JTAG to SWD adapter
- JTAG connector: 2×10 pins, 2.54 mm pitch
- SWD connector: 2×5 pins, 1.27 mm pitch
- LED indicator for VCC line power
- Dimensions: 34 × 25 × 12 mm
