64x64 RGB LED Matrix Panel - 64x64 RGB LED matrix display with 45° Curb-Cut (2.5mm)
search
  • 64x64 RGB LED Matrix Panel - 64x64 RGB LED matrix display with 45° Curb-Cut (2.5mm)
  • 64x64 RGB LED Matrix Panel - 64x64 RGB LED matrix display with 45° Curb-Cut (2.5mm)
  • 64x64 RGB LED Matrix Panel - 64x64 RGB LED matrix display with 45° Curb-Cut (2.5mm)
  • 64x64 RGB LED Matrix Panel - 64x64 RGB LED matrix display with 45° Curb-Cut (2.5mm)
  • 64x64 RGB LED Matrix Panel - 64x64 RGB LED matrix display with 45° Curb-Cut (2.5mm)
  • 64x64 RGB LED Matrix Panel - 64x64 RGB LED matrix display with 45° Curb-Cut (2.5mm)
ID: 1179386
zł359.41
Tax included

zł292.20 tax excl.

RGB LED matrix display with a resolution of 64x64 (4096 LED). It has cutouts at an angle of 45° to build an LED cube. Adafruit 5407

24h
Available
Available quantity: 1
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

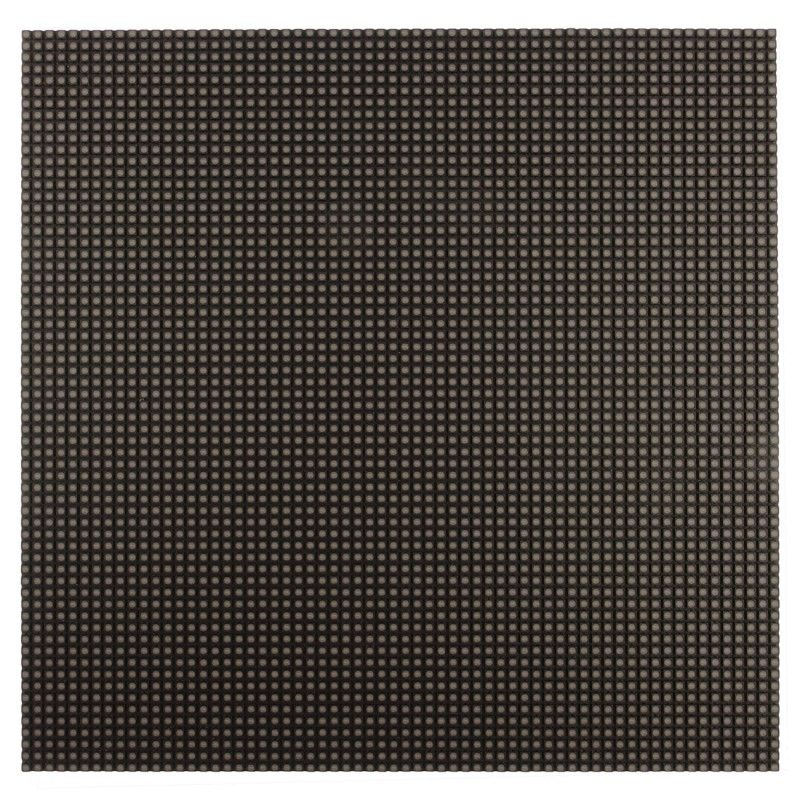

RGB LED matrix display with a resolution of 64x64 (4096 LED). Each LED can be controlled independently. The matrix has 2 IDC connectors on the back of the module, so you can connect multiple panels together and create a huge screen. It is recommended to use microcontrollers with large RAM memory capacity to operate the matrix. The module is powered by 5 V and uses the HUB75E interface.

The panel is constructed so that the die mounting element is cut out at an angle of 45°. This allows the panels to be joined at right angles and the RGB LED cubes can be built using six matrices.

Features

  • Resolution: 64 x 64
  • Frequency:> 2000 Hz
  • Brightness: ≧ 1200 cd/m2
  • 5 address pins
  • Protection IP20/IP43
  • Pixel pitch: 2.5 mm
  • Voltage: 5V
  • Dimensions: 160 x 160 mm

Kit contains

  • 64x64 RGB LED Matrix Panel
  • IDC cable
  • Power cord
