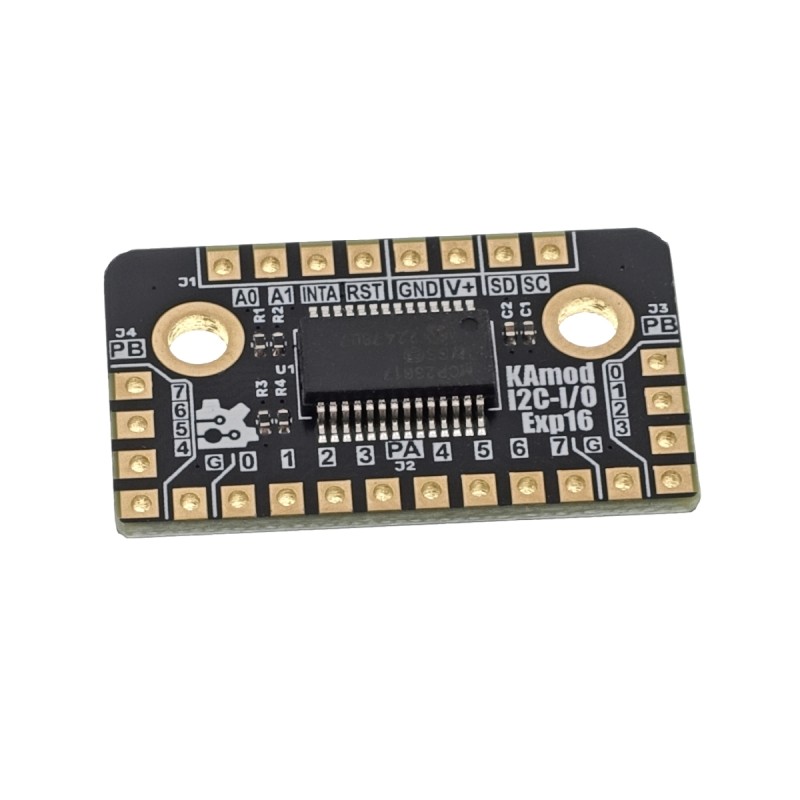

KAmod I2C-IOexp16 - Expander 16 digital I/O lines with MCP23017 chip
ID: 1195638
5906623499496
zł19.90
Tax included
zł16.18 tax excl.
The KAmod I2C-IOexp16 module is an extension equipped with 16 programmable digital lines (inputs or outputs), based on the MCP23017 system and controlled via the I2C bus with the possibility of connecting up to 8 modules thanks to addressing. The module works with a voltage from 2 to 5 V, has an interrupt output and allows for a current flow of up to 20 mA on each line
Description
The KAmod I2C-IOexp16 module contains 16 digital lines that can act as inputs or outputs. Control is via the I2C bus
Features
- 16 lines that can act as inputs or outputs, with a maximum current of 20 mA
- Includes an MCP23017 expander
- Control via an I2C interface with a clock speed of max. 1 MHz
- 3 address lines allow you to connect 8 modules to one I2C bus
- Interrupt output that can be assigned to the port A line
- 2...5 V power supply
- Dimensions: 18,3 x 31 mm
Included
- Assembled and started module
- 1 x simple 10-pin goldpin strip 2.54 mm raster
- 1 x simple 8-pin goldpin strip 2.54 mm raster
- 2 x simple 4-pin goldpin strip 2.54 mm raster
