- New
ON-OFF rocker switch 12VDC (red)
ID: 1202470
5902186337145
zł2.90
Tax included
zł2.36 tax excl.

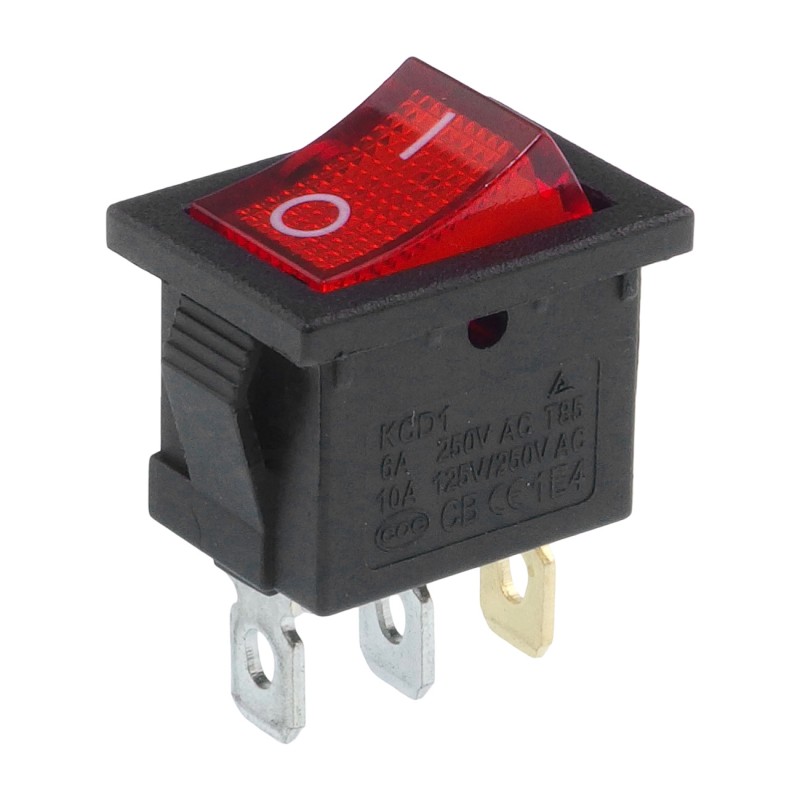

Illuminated ON/OFF rocker switch for panel mounting in electronic devices, with contact rating up to 10 A at 125 V AC and 6 A at 250 V AC
Description
Rocker switch is designed for manual switching of electrical circuits in power supplies, control enclosures, workshop equipment and electronic projects. Three terminal pins allow connection of the switching circuit and the red illumination supply, improving visibility of the switch operating state. The housing is adapted for snap-in panel installation, while the I/O marking on the rocker simplifies identification of ON and OFF positions.
Features
- Switch type: ON-OFF rocker
- Illumination: Red
- Illumination voltage: 12 V DC
- Contact rating: 10 A at 125 V AC
- Contact rating: 6 A at 250 V AC
- Number of pins: 3
- Contact configuration: SPST
- Mounting: Snap-in panel mount
- Rocker marking: I/O
- Housing material: Plastic
- Housing color: Black
- Rocker color: Red
1202470
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
