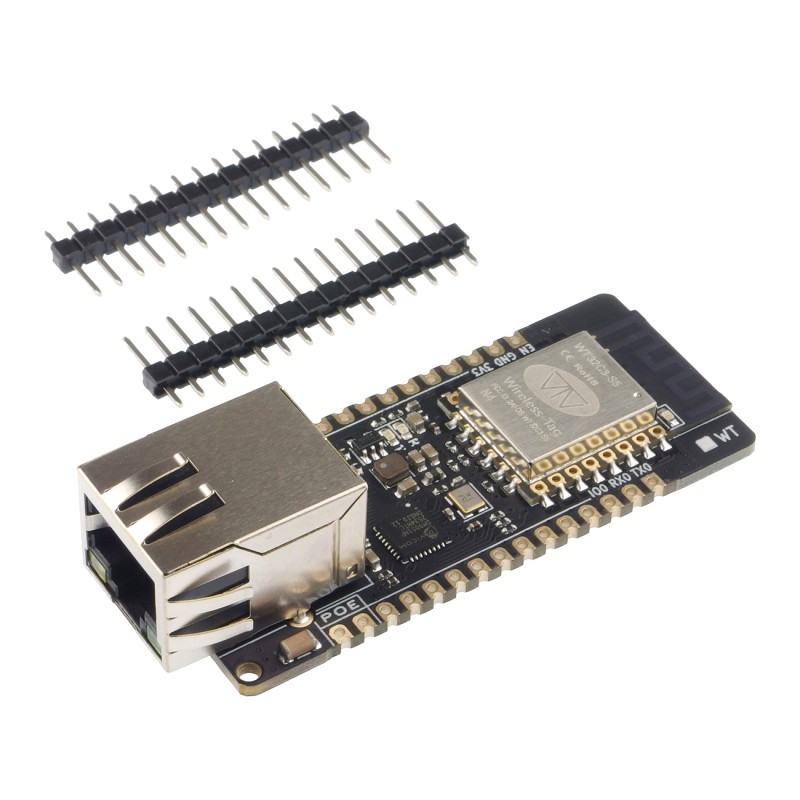

ETH01-EVO - Module with ESP32-C3, 2.4 GHz WiFi, Bluetooth 5 and Ethernet
ID: 1198861
zł91.13
Tax included
zł74.09 tax excl.
ETH01-EVO is an IoT communication module based on the ESP32-C3 microcontroller with support for 2.4 GHz WiFi, Bluetooth 5 LE and 10/100 Mb/s Ethernet via an RJ45 connector. It enables TCP/IP communication and control via AT commands, intended for integration with embedded systems. ETH01-EVO
Description
ETH01-EVO is a three-in-one communication gateway for IoT systems, integrating WiFi, Bluetooth Low Energy and wired Ethernet based on the ESP32-C3 with a 32-bit RISC-V core. The module enables network communication through a complete TCP/IP stack with support for IPv4, TCP and UDP, as well as configuration and control using an AT command set. It is designed for projects requiring stable wired connectivity combined with wireless communication on a single hardware platform.
Ethernet communication is provided through an RJ45 10/100 Mb/s interface, while data exchange with the controller is handled via the SPI bus. The ETH01-EVO module can be mounted directly onto a PCB or used with pin headers in prototyping projects. Support for WiFi modes such as Station, SoftAP, SoftAP+Station and P2P allows flexible adaptation to various system architectures.
The board features 32 Mbit Flash memory and operates at 3.3 V or 5 V depending on the power configuration. The average current consumption is approximately 80 mA. The operating temperature range from -40°C to +85°C enables use in industrial and outdoor environments.
The PCB also includes a reserved footprint for an dedicated PoE module, allowing the device to be powered directly via the Ethernet cable in network installations.
Features
- Microcontroller: ESP32-C3, 32-bit RISC-V, single-core
- Flash memory: 32 Mbit
- Wireless connectivity: 2.4 GHz WiFi 802.11 b/g/n, Bluetooth 5 LE
- Network port: RJ45 10/100 Mb/s
- Network stack: IPv4, TCP, UDP
- Command support: AT command set
- Controller interface: SPI
- WiFi modes: Station, SoftAP, SoftAP+Station, P2P
- Encryption: AES, RSA, ECC, SHA
- Supply voltage: 3.3 V or 5 V
- Average current consumption: approx. 80 mA
- Minimum supply current: 500 mA
- Operating temperature range: -40°C ~ +85°C
- Upgrade method: OTA via network
- Mounting: castellated pads or through-hole pin headers
- Reserved footprint for PoE module
