ID: 1198862
zł100.36
Tax included

zł81.59 tax excl.

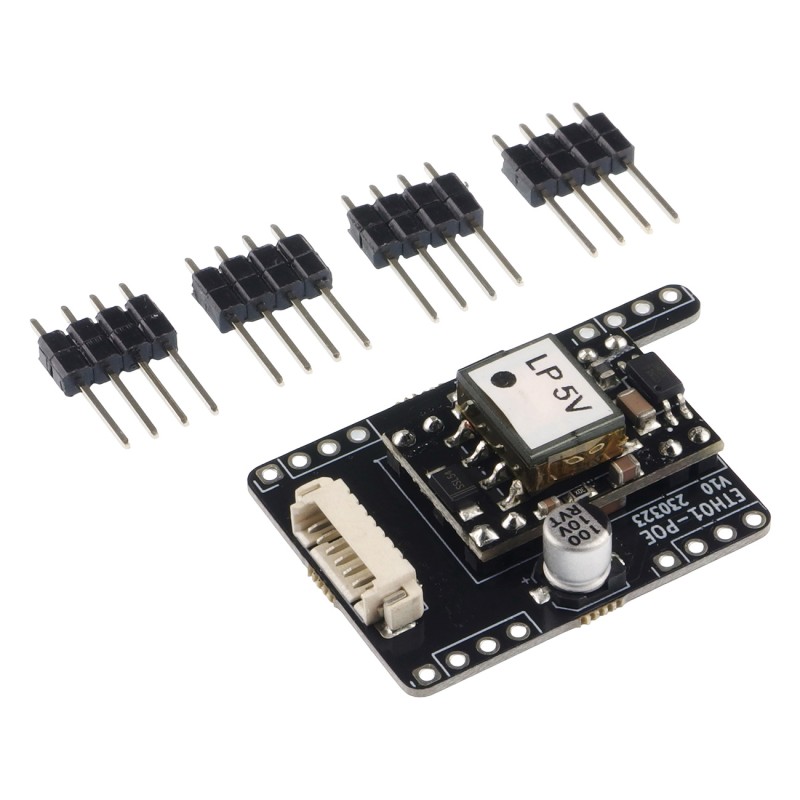

ETH01-EVO-PoE is a dedicated Power over Ethernet supply module designed exclusively for use with the ETH01-EVO module. It enables powering the device directly via the Ethernet cable using PoE technology, eliminating the need for an additional power supply

24h
Available
Available quantity: 2

Description

ETH01-EVO-PoE is a hardware extension designed exclusively for cooperation with the ETH01-EVO module. The board is mounted in the dedicated footprint on the main module and enables device power delivery through the Ethernet interface using Power over Ethernet technology. The solution is intended for network installations where both data transmission and power supply are required over a single RJ45 cable.

The module integrates the PoE power stage with the 10/100 Mb/s Ethernet interface of the base module, simplifying cabling in IoT systems, building automation and industrial installations. The high-quality PCB construction ensures stable operation even at elevated temperatures, up to 105°C.

The solution is intended exclusively for the ETH01-EVO model. The module is not compatible with other development boards or standard ESP32 modules without a dedicated connector matching the ETH01-EVO design.

Features

  • Module type: PoE extension
  • Compatibility: ETH01-EVO only
  • Function: Power over Ethernet supply
  • Integration: Mounted in dedicated ETH01-EVO slot
  • Supported port: RJ45 10/100 Mb/s via base module
  • Component operating temperature: up to 105°C
  • PCB material: High-quality laminate
  • Application: Network installations, IoT, automation
1198862

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
