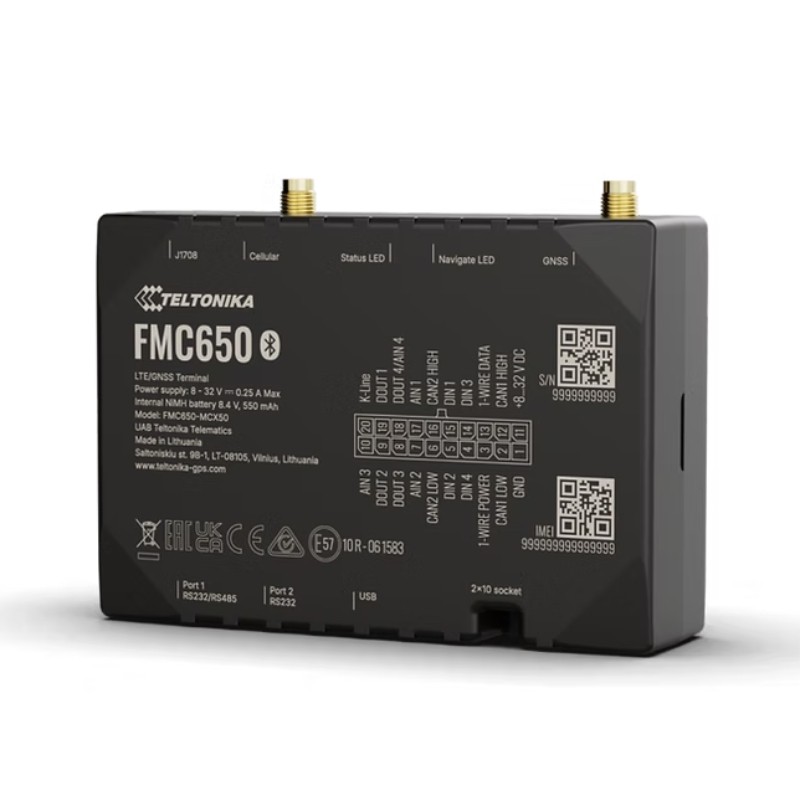

Teltonika FMC650 - GPS vehicle tracker LTE Cat 1 with GNSS and CAN

Description

Teltonika FMC650 is designed for vehicle tracking in advanced telematics systems, international transport, logistics, agriculture, and specialized vehicles. LTE Cat 1 connectivity with fallback to 2G (GSM) enables data transmission in varying coverage conditions, while support for European LTE bands, including B20, ensures compatibility with regional network infrastructure. The device supports data transfer up to 10 Mbps (DL) and 5 Mbps (UL), as well as communication via SMS.

The dual-band (L1+L5) GNSS receiver supports GPS, GLONASS, GALILEO, BEIDOU, and QZSS, improving positioning stability and accuracy (< 2.5 m CEP). External GNSS and LTE antennas allow installation in vehicles with limited signal access. CAN interfaces (J1939, J1708), RS232, RS485, and 1-Wire enable integration with tachographs, sensors, and vehicle systems. The built-in 550 mAh battery allows operation without external power, while Dual-SIM or eSIM support increases communication reliability.

Features

• MeiG SLM320-PE2C modem – LTE Cat 1 with fallback to 2G
• LTE FDD bands: B1 / B3 / B7 / B8 / B20 / B28
• GNSS: GPS / GLONASS / GALILEO / BEIDOU / QZSS
• dual-band GNSS receiver L1+L5
• GNSS sensitivity -162 dBm
• positioning accuracy < 2.5 m CEP
• Bluetooth 5.0 + LE
• interfaces: 4x DI, 4x DO, 4x AI
• CAN: J1939 (2x), J1708 (1x)
• RS232: 2
• RS485: 1
• 1-Wire: 1
• K-line: 1
• data transmission: LTE up to 10 Mbps (DL) / 5 Mbps (UL)
• SIM card: 2x SIM (Dual-SIM) or eSIM
• memory: 16 MB flash + microSD up to 32 GB
• built-in battery 550 mAh (Ni-MH, 8.4 V)
• input voltage range 8–32 V DC
• external GNSS and LTE antennas
• USB Mini-USB interface
• dimensions 104.1 x 76.8 x 31.5 mm
• weight 197 g
• operating temperature from -40°C to +85°C

Kit includes

• FMC650 tracker
• Input/Output power supply cable 0.9 m
• 4G/GSM antenna 3.0 m
• GNSS antenna 3.0 m
