ID: 1201764
zł43.90
Tax included

zł35.69 tax excl.

Articulated rubber duck antenna operating in the 400 - 900 MHz UHF band, SMA male connector, 50 Ω impedance, gain up to 3.5 dBi, intended for RF devices and UHF systems. Seeed Studio 109990205

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Seeed Studio 109990205 is an articulated rubber duck antenna designed for operation in the UHF 400 - 900 MHz band. The construction provides good reception sensitivity and stable performance across a wide frequency range, covering TV bands, Digital TV Broadcast and frequencies used by UHF wireless microphones. The antenna is suitable for professional audio and video systems as well as RF measurement devices.


The antenna is intended for use with spectrum analyzers, RF scanners and other measurement and communication devices operating in the UHF band. The articulated design allows adjustment of the antenna position, while the flexible housing provides mechanical durability with low weight.

Features

  • Frequency range: 400 - 900 MHz
  • Characterized response: 400 - 950 MHz
  • Impedance: 50 Ω
  • Connector: SMA male
  • Type: Rubber duck, articulated

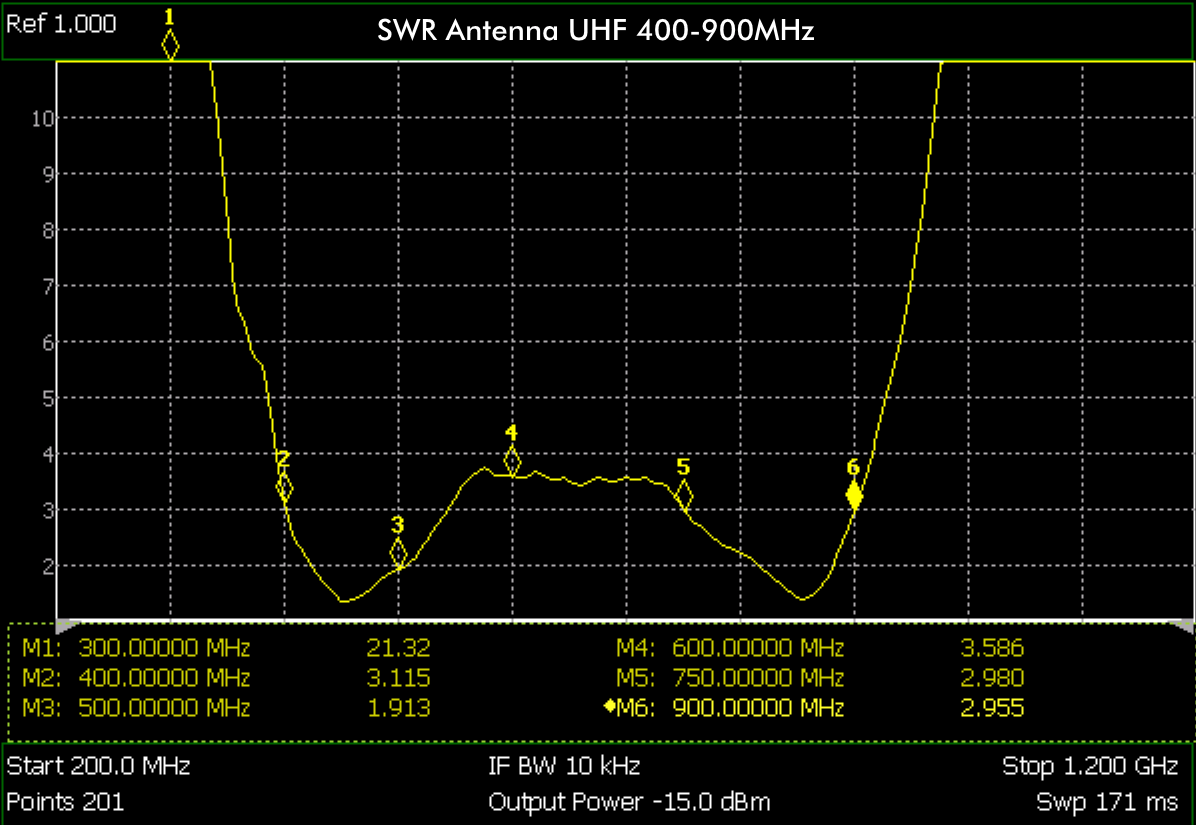

  • VSWR: <2 at 450 and 850 MHz
  • VSWR: <3.5 in the 400 - 900 MHz range
  • Polarization: Vertical
  • Gain: Up to 3.5 dBi
  • Maximum power: 50 W
  • Dimensions: 80 x 120 x 8.3 mm
  • Weight: 13 g
