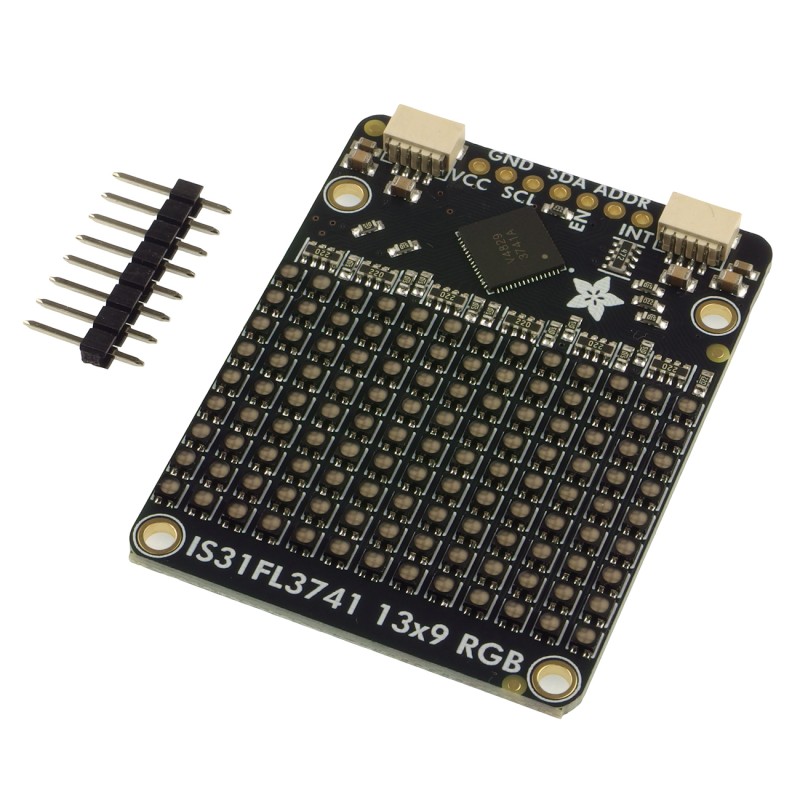

STEMMA QT IS31FL3741 13x9 PWM RGB LED Matrix Driver - 13x9 RGB LED Matrix Display
ID: 1183299
5902186301672
zł85.67
Tax included
zł69.65 tax excl.
RGB LED matrix display with 13x9 LEDs. Equipped with IS31FL3741 driver and two STEMMA QT connectors. Adafruit 5201
Description
A matrix display that consists of 117 RGB LEDs, 2x2 mm in size, in a 13x9 arrangement with a 3 mm raster. It uses analog LEDs controlled by PWM signals. An IS31FL3741 chip and two STEMMA QT/Qwiic connectors are placed on the board, allowing the user to control all the LEDs via the I2C bus. It is also possible to adjust the current of the driver, so the entire display can be brightened or dimmed without losing color resolution. The board can work with 3.3V to 5V power and logic. There are jumpers on the bottom of the PCB to configure the I2C address, which makes it possible to connect several displays to a single bus. The module is easy to use with libraries dedicated to Arduino and CircuitPython. Full documentation is available on the product page.
Features
- 13x9 LED matrix
- LED color: RGB
- Resolution: 8-bit PWM
- IS31FL3741 driver
- Interface: I2C
- I2C address configuration jumpers
- STEMMA QT/Qwiic connector
- Power supply voltage: 3.3 V or 5 V
Kit contains
- RGB 13x9 LED matrix display module
- Straight 8-pin male goldpin connector
1183299
Data sheet
- Screen type
- LED Matrycowe
- Resolution
- 13 x 9
- Colour
- RGB
