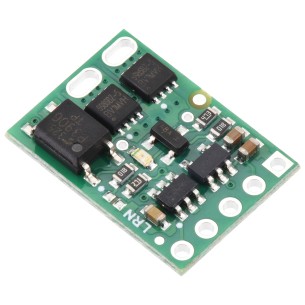

The Pololu 5422 module enables precise and safe control of loads in RC systems while maintaining galvanic isolation. The solid-state relay with SPST configuration provides silent switching of currents up to 6 A and voltages up to 60 V. It is dedicated to switching motors, valves, and other components in RC and automation projects.

6 weeks
Awaiting delivery
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The Pololu 5422 module, equipped with a SPST (Single Pole Single Throw) solid-state relay, enables switching of bidirectional loads while maintaining galvanic isolation between the control circuit and the load. Control is performed via an RC interface within a supply voltage range of 2.7–16 V. The device is equipped with a safe-start feature, programmable activation threshold, and configurable operating direction. The load can be switched in either high-side or low-side configuration. The relay supports currents up to 6 A at voltages up to 60 V (maximum value).

Control is carried out using RC pulses, and the system compares their length with the activation threshold with ±64 µs hysteresis. The threshold value can be configured through a learning mode. Two digital outputs (OUT, GOOD) indicate the relay status and RC signal validity. Terminal outputs are factory-soldered (goldpin connector and 2-pin 3.5 mm screw terminal).

Properties

  • Control circuit supply voltage: 2.7–16 V
  • Maximum current consumption of the system: 15 mA
  • Load voltage range: up to 60 V (max.)
  • Maximum load current: 6 A
  • On-state resistance: 30 mΩ (typical)
  • Galvanic isolation of control from load (optical isolation)
  • SPST solid-state relay with back-to-back MOSFETs
  • Configurable switching direction and activation threshold
  • OUT output – relay status indication
  • GOOD output – RC signal validity indication
  • Connectors: goldpin 1×3 (for RC) and 2-pin 3.5 mm screw terminal (for load)
  • Dimensions: 0.7″ × 0.5″ × 0.5″ (~17.8 mm × 12.7 mm × 12.7 mm)
  • Weight: 1.6 g
1199639

Data sheet

Output current
6A
Number of channels
1
Executive element
SSR
Coil voltage
Nie dotyczy
