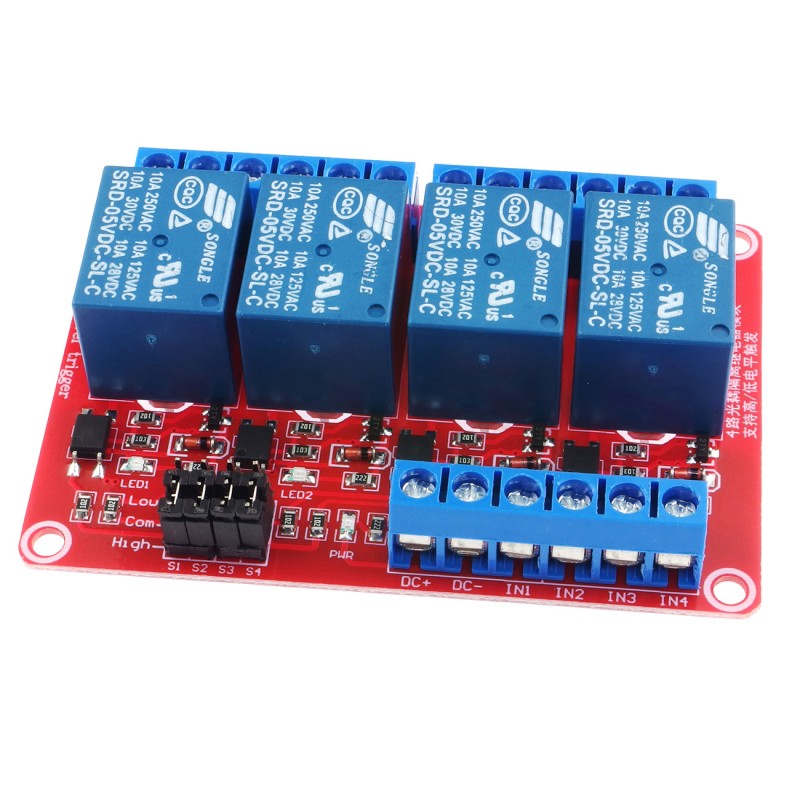

modRL04_ISO - power module with four 5V relays and optoisolation of inputs
ID: 559506
5906623454891
zł22.40
Tax included
zł18.21 tax excl.
The module contains four 5V relays with a maximum current of 10A (250 VAC) and opto-isolated inputs, and with jumpers it is possible to select switching with high or low status. The module is equipped with screw connectors. modRL04_ISO
Description
The module allows independent control of four loads connected to the output, and the optical separation of inputs from relays protects the device controlling the module against damage. modRL04_ISO operates at 5V and can control the load with a maximum current consumption of 10A (at 250V AC) in NO / NC mode. Both input and output signals are connected to the screw connectors, which guarantees an effective and reliable connection. The module also has the ability to change the state at which the relay should be activated - it can be triggered by a low or high state.
properties
- Module with four relays
- Input optoisolation
- Operating voltage: 5 V DC
- Power consumption: approx. 80 mA / channel
- It has LEDs for channel operation and module power supply
- The possibility of independent configuration of the triggering state
- Screw connectors for input and output signals
- NO and NC contacts are output
- It has mounting holes with a diameter of 3 mm
- Dimensions: 73 x 50 x 20 mm
559506
Data sheet
- Output current
- 10A
- Number of channels
- 4
- Executive element
- Przekaźnik
- Coil voltage
- 5 VDC
