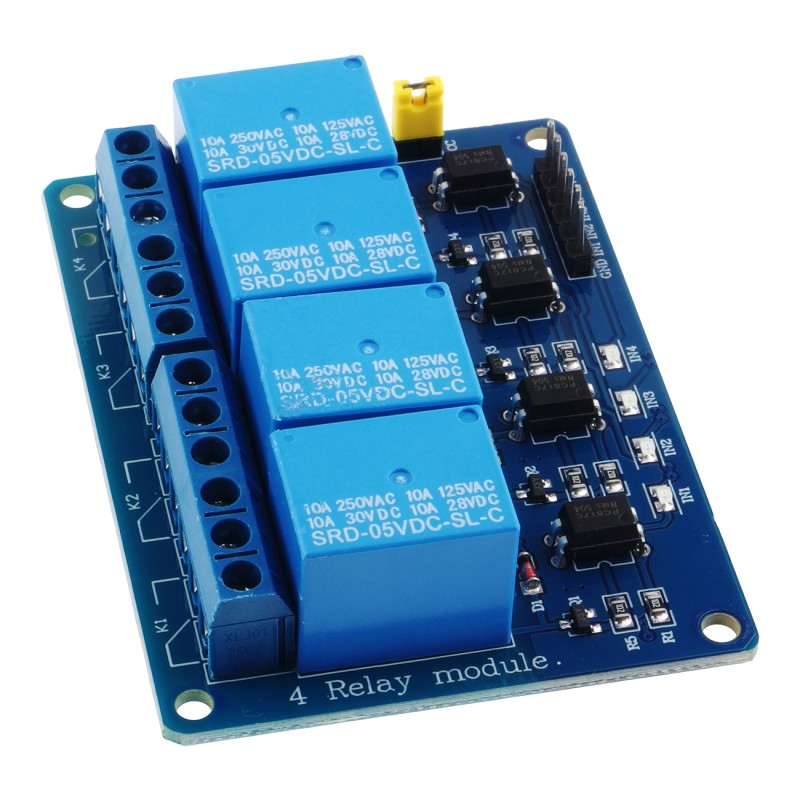

Relay module 4 channels with optoisolation, 10 A / 250 V AC, 5 V coil
ID: 1200540
5902186331518
zł17.90
Tax included
zł14.55 tax excl.
Four-channel relay module with optoisolation, allowing control of loads up to 10 A at 250 V AC or 30 V DC. Thanks to standard interfaces and separate JD-VCC power supply, it is compatible with most microcontrollers and automation systems, ensuring safe integration and convenient installation.
Description
Four-channel relay module designed for controlling AC and DC loads from microcontrollers, PLCs, or automation systems. Each relay supports currents up to 10 A at 250 V AC or 30 V DC. The module is equipped with optoisolated input signals, ensuring safe cooperation with control systems. Logic and relay power supply can be separated thanks to a dedicated JD-VCC input. The board features screw terminals for convenient load connection and mounting holes.
Properties
- Number of channels: 4
- Relays: type SRD-05V
- Coil voltage: 5 V DC
- Control: low level (LOW) on inputs IN1–IN4
- Isolation: input optoisolation
- Maximum contact voltage: 250 V AC / 30 V DC
- Maximum contact current: 10 A
- Control connectors: VCC, GND, IN1–IN4, JD-VCC
- Output connectors: ARK screw terminals
- Dimensions: 76 × 56 × 19 mm
- Weight: 58 g
1200540
Data sheet
- Output current
- 10A
- Number of channels
- 4
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 5 VDC
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
