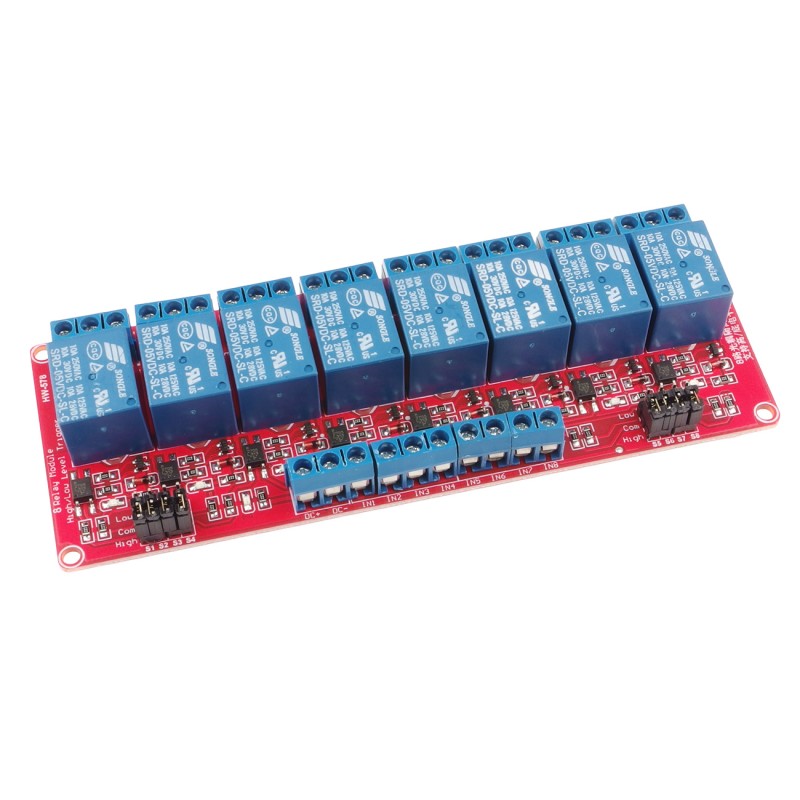

modRL08_ISO - power module with eight 5V relays and optoisolation of inputs
ID: 559507
5906623473304
zł21.01
Tax included
zł17.08 tax excl.
The module contains eight 5V relays with a maximum current of 10A (250 VAC) and opto-isolated inputs, and with jumpers it is possible to select high or low switching. The module is equipped with screw connectors. modRL08_ISO
Description
The module allows independent control of eight loads connected to the output, and the optical separation of inputs from relays protects the device controlling the module against damage. modRL08_ISO operates at 5V and can control the load with the maximum current consumption of 10A (at 250V AC) in NO / NC mode. Both input and output signals are connected to the screw connectors, which guarantees an effective and reliable connection. The module also has the ability to change the state at which the relay should be activated - it can be triggered by a low or high state.
properties
- Module with eight relays
- Input optoisolation
- Operating voltage: 5 V DC
- Power consumption: approx. 80 mA / channel
- It has LEDs for channel operation and module power supply
- The possibility of independent configuration of the triggering state
- Screw connectors for input and output signals
- NO and NC contacts are output
- It has mounting holes with a diameter of 3 mm
- Dimensions: 141 x 50 x 20 mm
Included
- Module with eight relays
559507
Data sheet
- Output current
- 10A
- Number of channels
- 8
- Executive element
- Przekaźnik
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
