Modbus RTU Relay (B) 8-channel module with RS485 interface - Waveshare 25739
ID: 1194511
5902186303249
zł139.67
Tax included
zł113.55 tax excl.
Industrial relay module controlled via RS485 interface with Modbus RTU protocol support, offering 8 outputs with maximum load of 10 A. Equipped with galvanic isolation, opto-isolation, TVS diodes and DIN mounting, it ensures safe and reliable operation in harsh industrial conditions. Thanks to functions such as flash-on/off, configurable RS485 address (1-255), signaling diodes and wide power supply range (7-36 V), the module is perfect for building automation and device control. Waveshare Modbus RTU Relay (B)
Description

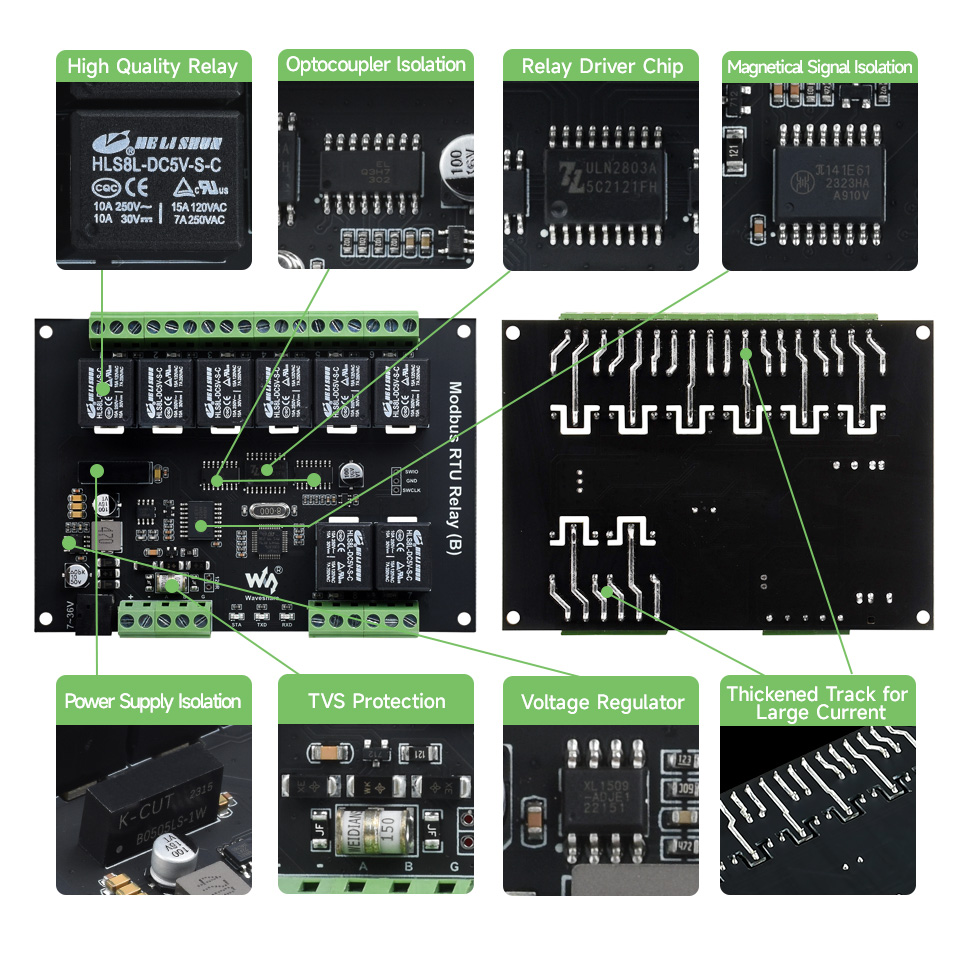

Modbus RTU Relay (B) is an industrial relay module controlled via RS485 interface, supporting the standard Modbus RTU protocol. Thanks to advanced protection circuitry such as galvanic isolation of power and signal lines, TVS diodes, and optoisolation, the module ensures a high level of safety, stability, and reliability. It is designed for industrial applications requiring fast and fault-resistant communication.

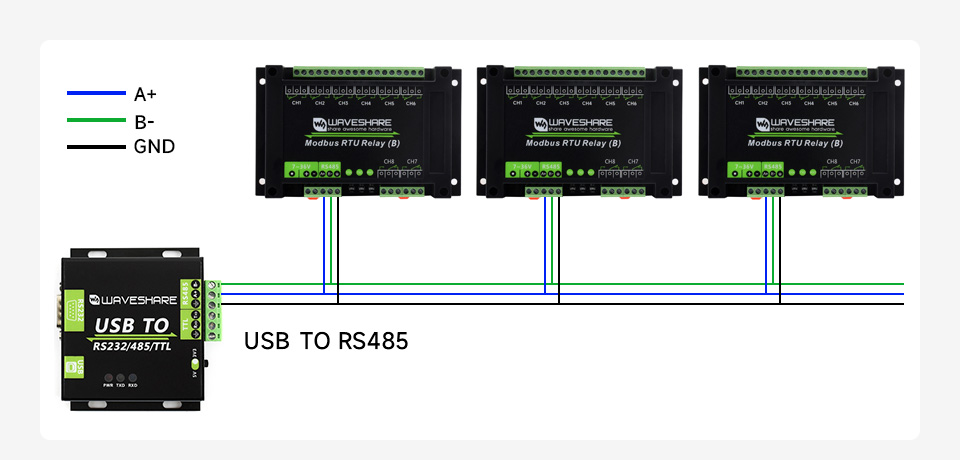

The module features 8 relays with a maximum switching current of 10A at 250VAC or 30VDC, allowing for direct control of both household and industrial devices. The ABS enclosure is suitable for DIN rail mounting, making integration into existing installations easy. The device supports RS485 address configuration in the range of 1–255, enabling multiple modules to be connected on a single bus.
Additional features such as flash-on/flash-off (timed relay activation) and built-in LED indicators for operation status significantly improve diagnostics and usability. The wide input voltage range of 7 to 36V makes the module highly versatile and ready for use in various environments. The system is based on dedicated control chips to ensure reliable relay operation and resistance to interference. It is an excellent solution for applications such as building automation, device control, monitoring, and industrial system integration.
Features
- Communication: RS485 with Modbus RTU protocol support
- Number of relay channels: 8
- Contact type: 1NO 1NC
- Contact rating: ≤10A 250VAC / 30VDC
- Configurable device address: 1–255
- Baud rate: 4800 – 256000 (default: 9600, N, 8, 1)
- Power supply voltage: 7 to 36V DC
- Built-in power and signal isolation, overvoltage and short-circuit protection
- Optical isolation to prevent interference from high-voltage systems

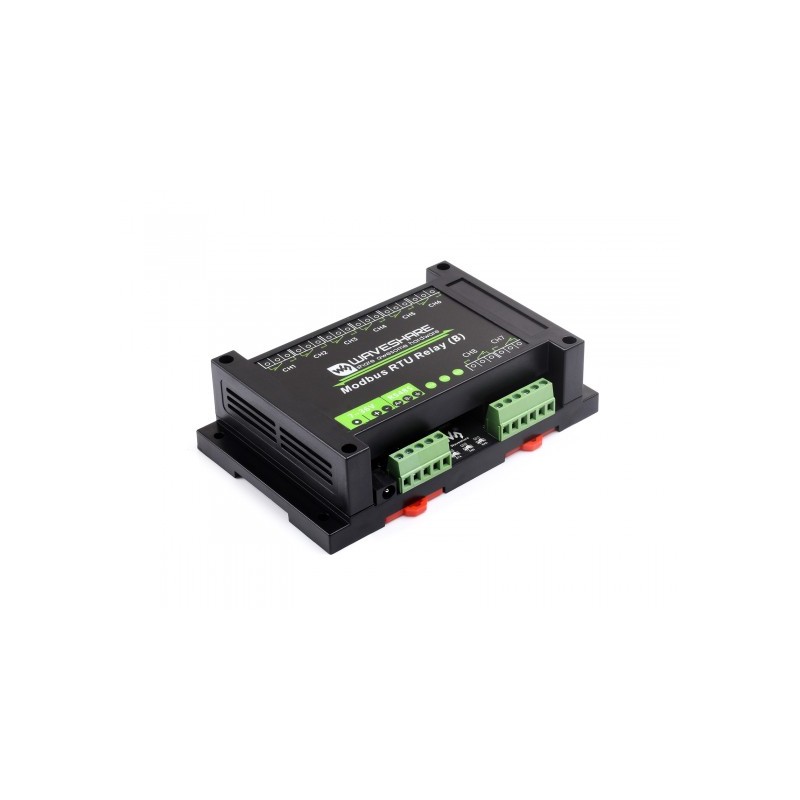

- Enclosure: ABS plastic, DIN rail mounting
- LED indicators: STA (MCU), TXD (transmit), RXD (receive)
- Dimensions: 175 × 90 × 40 mm
1194511
Data sheet
- Output current
- 10A
- Number of channels
- 8
- Executive element
- Przekaźnik
- Coil voltage
- 30 VDC / 250 VAC
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
