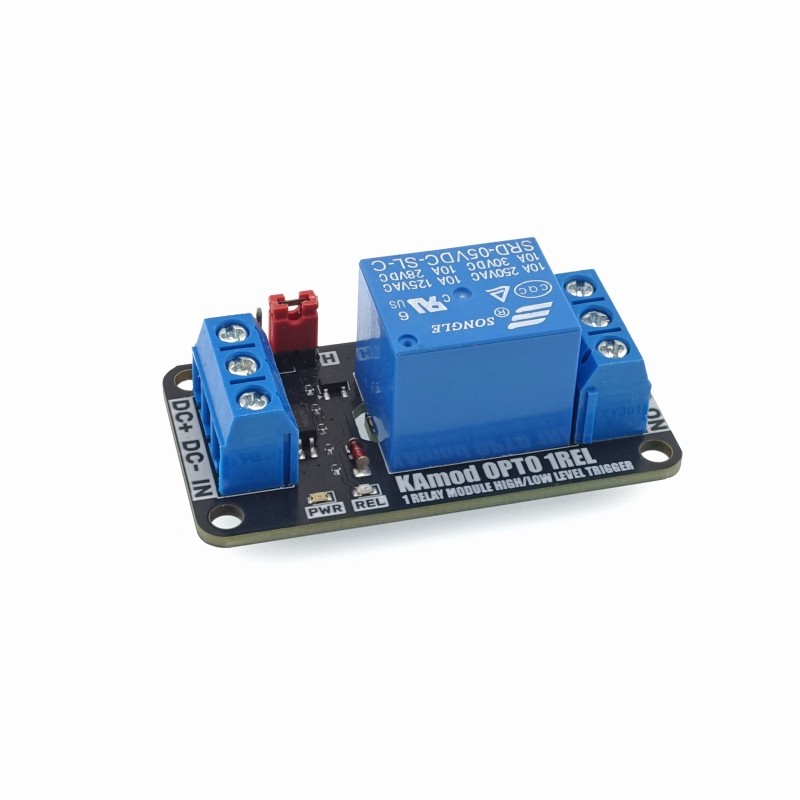

KAmod OPTO 1REL – Power module with 5V relay and input optoisolation
ID: 1197504
5902186304000
zł9.90
Tax included
zł8.05 tax excl.
1-channel relay module with optoisolation and configurable triggering is a versatile solution for load control in microcontroller projects. Thanks to its compact design and stable connectors, it is suitable for automation and prototyping applications.
Description
The universal module with a single SPDT relay allows independent control of a load with a maximum current of 10 A and voltage up to 250 V AC or 30 V DC. It is operated via a digital signal from a microcontroller or development board. The built-in optoisolation separates the input circuit from the output, protecting control electronics from interference and voltage spikes.
The module operates at 5 V and features configurable trigger mode – the relay can be activated by either a LOW or HIGH state using a jumper ("L" or "H" positions). LED indicators signal power presence and relay activation. Wires are connected via ARK screw terminals, ensuring secure connections.
Specifications
- 1 × SPDT relay: 10 A 250 V AC or 10 A 30 V DC
- Operating voltage: 5 V
- Trigger mode selection jumper: LOW / HIGH
- Input optoisolation
- Relay status LEDPower LED
- ARK screw terminals
- Output pins: NO, NC, COM
- PCB dimensions: 26 × 50 mm
- Mounting hole spacing: 20 × 44 mm
- Mounting hole diameter: 3 mm
1197504
Data sheet
- Output current
- 10A
- Number of channels
- 1
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 30 VDC / 250 VAC
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
