modRL04_uUSB - power module with four 10A relays and UART / USB interface
ID: 564110
5906623455997
zł46.65
Tax included
zł37.93 tax excl.

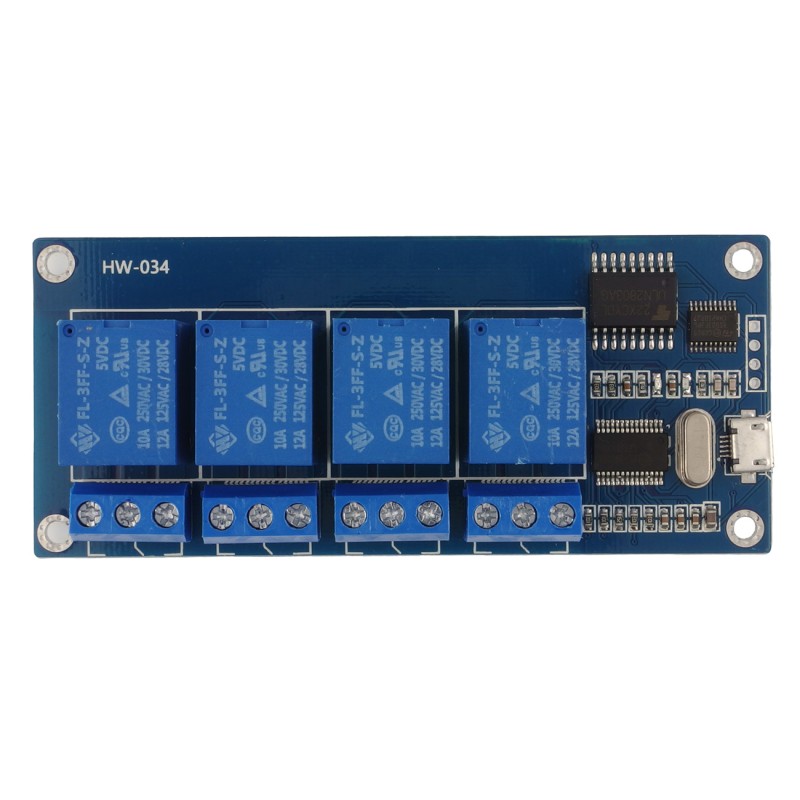

The module is equipped with four 10A / 250VAC relays controlled independently via a serial bus (UART) or from a PC (through a microUSB connector). The NO / NC contacts of the relays have been led to the ARK screw terminals. ICSTATION ICSE012A
Description
The module is equipped with four 10A / 250VAC relays controlled independently via a serial bus (UART) or from a PC (through a microUSB connector). The NO / NC contacts of the relays have been led to the ARK screw terminals. The board recommended for use with Arduino enables control of four relays using only two microcontroller lines.
properties
- Module with four 10 A / 250 VAC relays
- Screw terminals (ARK) for power cables
- UART bus
- Thanks to the use of a serial bus, a large number of control lines is not required
- Transmission speed: 9600 bps
- Number of data bits: 8
- Number of stop bits: 1
- Parity: missing
- Flow control: turned off
- Power supply: 5 V DC
- Power consumption: 400 mA
- Built-in power LED and data reception indicator
- Possibility of power supply via microUSB connector
- Possibility of control from a PC or via a USB single board computer (built-in PL2303HX converter)
- Soldered solder pads for UART bus cables (5 V)
- Supported operating systems: Windows XP, Windows Vista, Windows 7, Linux
- Mounting holes with a diameter of 3 mm
- Dimensions: 440 mm x 100 mm x 20 mm
- Weight: 58 g
Attention!
The card does not work with Microsoft Windows 8, 8.1, 10 operating systems
staff
The modRL04_uUSB module is controlled via the UART bus. When the power is turned on, the relay card is waiting for the hexadecimal value 0x50. If it is sent to the module, it will reply with its identifier (ICSE012A has the identifier 0xAB). After this operation, sending the number 0x51 will enter the module into the bus listening state - each subsequent received value will control the relays. For the value 0x00 all relays are on, and the value 0xFF disables all relays. For example, the value 0x07 (binary: 0111) will turn on the first relay, excluding the others.
564110
Data sheet
- Output current
- 10A
- Number of channels
- 4
- Executive element
- Przekaźnik
- Coil voltage
- Nie dotyczy
Manufacturer
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
Responsible person
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
