modRL08_uUSB - power module with eight 10A and UART / USB relays
ID: 564109
5906623455980
zł55.60
Tax included
zł45.20 tax excl.

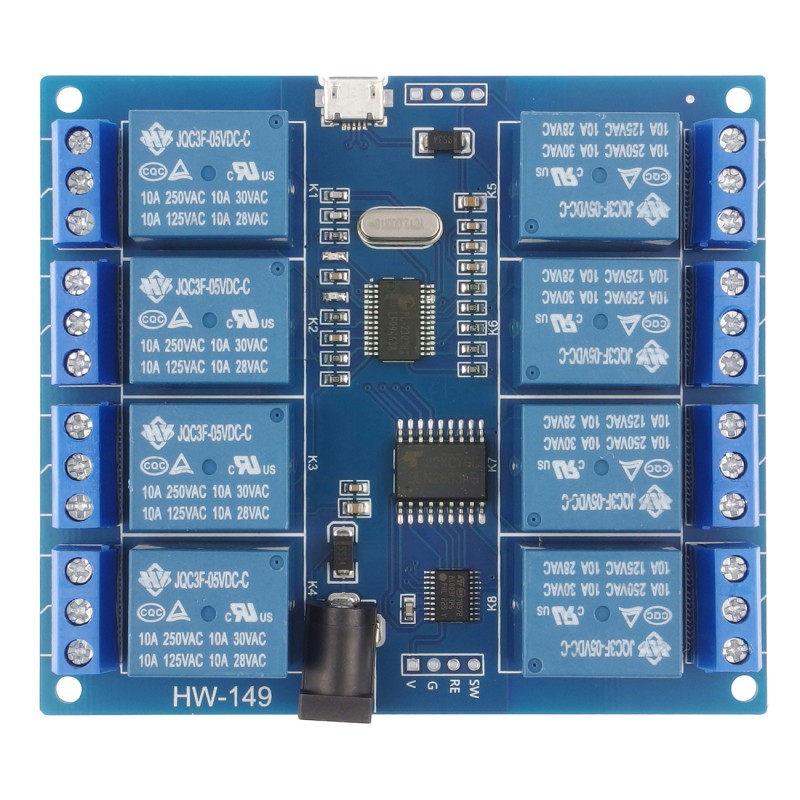

The module is equipped with eight 10A / 250VAC relays controlled independently via a serial bus (UART) or from a PC (through a microUSB connector). The NO / NC contacts of the relays have been led to the ARK screw terminals. The board recommended for use with Arduino enables the control of eight relays using only two microcontroller lines. ICSTATION ICSE014A
Description
The module is equipped with eight 10 A / 250 V AC relays controlled independently via a serial bus (UART) or from a PC (through a microUSB connector). The NO / NC contacts of the relays have been led to the ARK screw terminals. The board recommended for use with Arduino enables the control of eight relays using only two microcontroller lines.
Features
- Module with eight 10 A / 250 V AC relays
- Screw terminals (ARK) for power cables
- UART bus
- Thanks to the use of a serial bus, a large number of control lines are not required
- Transmission speed: 9600 bps
- Number of data bits: 8
- Number of stop bits: 1
- Parity: missing
- Flow control: turned off
- Built-in power LED and data reception indicator
- Possibility of power supply via microUSB connector
- Possibility of control from a PC or via a USB single board computer (built-in PL2303HX converter)
- Soldered solder pads for UART bus cables (5 V)
- Supported operating systems: Windows XP, Windows Vista, Windows 7, Linux
- Mounting holes with a diameter of 3 mm
- Power supply: 5 V DC
- Power consumption: 700 mA
- The possibility of connecting an external 5V power supply when we are unable to provide enough power from the USB port
- Dimensions: 91 x 80 x 18 mm
Attention!
The card does not work with Microsoft Windows 8, 8.1, 10 operating systems
Usage
The modRL08_uUSB module is controlled via the UART bus. When the power is turned on, the relay card is waiting for the hexadecimal value 0x50. If it is sent to the module, it will reply with its identifier (ICSE014A has the identifier 0xAC). After this operation, sending the number 0x51 will enter the module into the bus listening state - each subsequent received value will control the relays. For the value 0x00 all relays are on, and the value 0xFF disables all relays. For example, the value 0x7F (binary: 01111111) will turn on the first relay, excluding the others.
564109
Data sheet
- Output current
- 10A
- Number of channels
- 8
- Executive element
- Przekaźnik
- Coil voltage
- Nie dotyczy
Manufacturer
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
Responsible person
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
