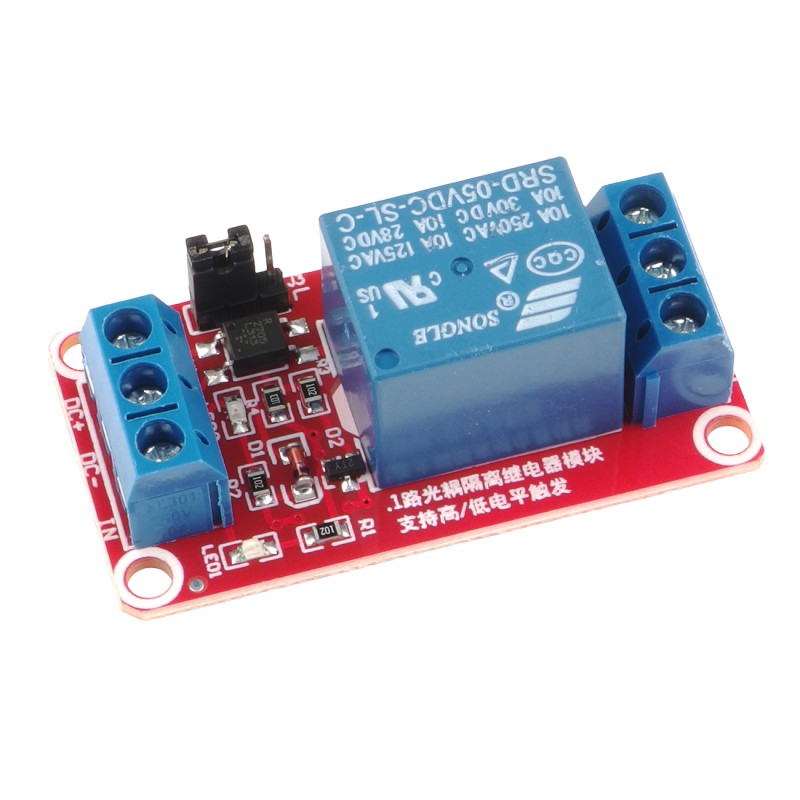

Power module with 5V relay and input optoisolation
ID: 564517
5906623467211
zł8.84
Tax included
zł7.19 tax excl.
The module contains a 5 V relay with a maximum current of 10 A (250 VAC) and optoisolated inputs, and with jumpers it is possible to select high or low switching. The module is equipped with screw connectors
Description
The module allows independent control of the load connected to the output, and the optical separation of the input from the relays protects the device controlling the module against damage. modRL01_ISO operates at 5V and can control the load with the maximum current consumption of 10A (at 250V AC) in NO / NC mode. Both input and output signals are connected to the screw connectors, which guarantees an effective and reliable connection. The module also has the ability to change the state at which the relay should be activated - it can be triggered by a low or high state (jumper in position: "L" - low state release, "H" - high state trip).
properties
- Module with one relay
- Input optoisolation
- Operating voltage: 5 V DC
- Power consumption: approx. 80 mA
- It has a diode signaling the channel operation and module supply
- Screw connectors for input and output signals
- NO and NC contacts are output
- Mounting holes with a diameter of 3 mm
- Dimensions: 63 x 33 x 20 mm
564517
Data sheet
- Output current
- 10A
- Number of channels
- 1
- Executive element
- Przekaźnik
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
