Numato Lab NLETHGC016-HA - 16 Channel Ethernet Pluggable GPIO Module
ID: 1186918
5906623497232
zł371.39
Tax included
zł301.94 tax excl.
The module offers 16 TTL-compatible GPIOs, 10 analog channels and individual I/O configuration, making it ideal for automation, DIY projects and advanced system engineering, with the possibility of remote control via standard network interfaces. Numato Lab NLETHGC016-HA
Description
Application
- Automation: Ideal for use in industrial automation systems where reliable control and monitoring of multiple devices is needed.
- DIY Projects: Suitable for advanced hobby projects where flexibility in I/O configuration is required.
- Systems Engineering: Can be used by engineers to create complex control systems, with the possibility of remote management via network interfaces.
Properties
- 16 TTL Compatible GPIOs (3.3V): The module supports 16 TTL 3.3V logic level compatible GPIO inputs/outputs, ensuring wide compatibility with a variety of devices and systems.
- 10 Analog Input Channels: The module is equipped with 10 input channels that can be multiplexed with GPIO. It has 10-bit resolution for accurate reading of analog values.
- Individual GPIO Configuration: All GPIOs can be individually configured as input or output, allowing for flexible adaptation to specific project needs.
- Easy Connection Connectors: GPIO pins are available on easily accessible connectors, simplifying the process of connecting and integrating with other system components.
- Control Using Standard Applications: The module can be controlled using standard serial console applications via TELNET, web interface, HTTP or custom applications, allowing for wide compatibility and ease of integration.
- Readall/writeall support: Functionality that allows all GPIOs to be read and updated with a single command, speeding up and simplifying operations on systems requiring fast response.
1186918
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
Module with 4 SSR relays with a load of up to 3 A. The board is equipped with the ULN2003 system and communicates via a digital interface. Numato Lab SSRC40001-AC
zł471.09
3 weeks
No product available!
The module with 2 relays is designed for the M5Stack sets. It allows you to control devices with an operating voltage of up to 250 V AC and a current of up to 8 A or a voltage of 28 V DC and a current of 8 A. M5Stack U131
zł39.90
24h
Available quantity: 1
Available
Module with 2 relays with a maximum switching current of 7 A. Equipped with the ATmega328P microcontroller, it can be programmed in the Arduino IDE. Numato Lab PRLY001
zł325.54
24h
Available quantity: 1
Available
Module with 8 SSR relays with a load of up to 3 A. The board communicates via the USB interface. Numato Lab SSR80001-DC
zł834.97
3 weeks
No product available!
Module with 8 relays 12 V with a maximum switching current of 7 A. Numato Lab RL40004
zł111.17
24h
Available quantity: 2
Available

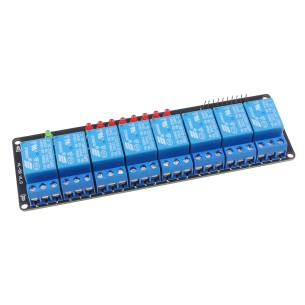

The module contains eight 5V relays with a maximum current of 10A (250 VAC) and opto-isolated inputs, and with jumpers it is possible to select high or low switching. The module is equipped with screw connectors. modRL08_ISO
