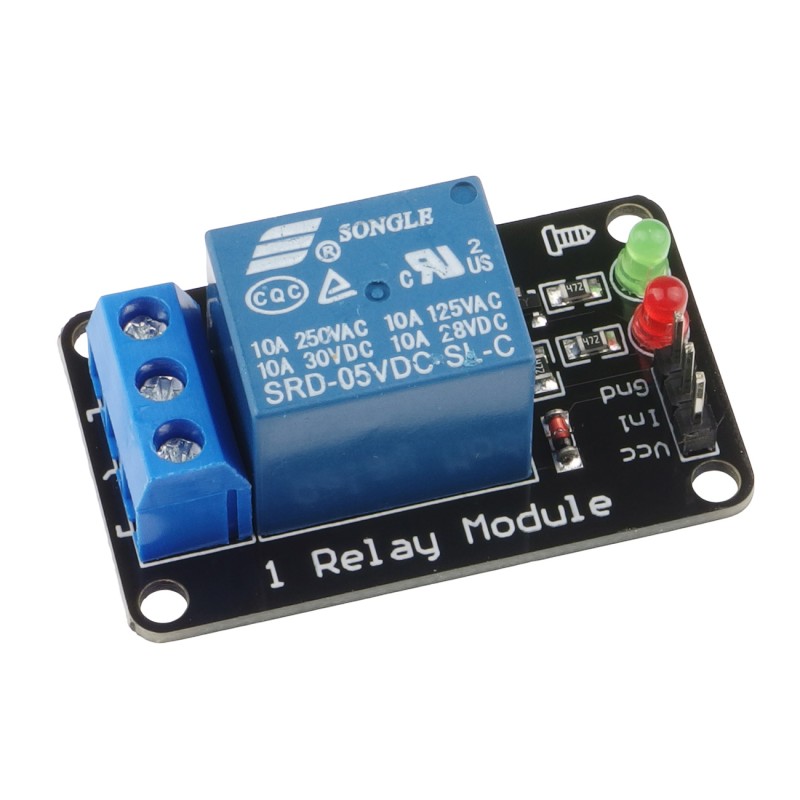

Module with 10A/250VAC (10A/24VDC) relay
ID: 233508
5906623441310
zł5.57
Tax included
zł4.53 tax excl.
ModRL01 module with 10A/250VAC (10A/24VDC) relay, supply of 5 V load relay coil, additional control circuit, protected overvoltage control
Description
ModRL01 module with 10A/250VAC (10A/24VDC) relay. Relay control can be passed through a control transistor. Thanks to this, the current consumption of the connected control unit is 20 mA. The module has also been equipped with a diode that protects the control system against the transition induced by the relay coil when it is turned off.
Features
- Module supply voltage: 5 V
- Maximum switched current: 10 A
- Maximum switchable prices: 250 VAC or 24 VDC
- Control signal voltage: 5 V (TTL)
- Control connection current consumption: 20 mA
- Dimensions: 43.5 x 26.5 x 18 mm
233508
Data sheet
- Output current
- 10A
- Number of channels
- 1
- Executive element
- Przekaźnik
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
