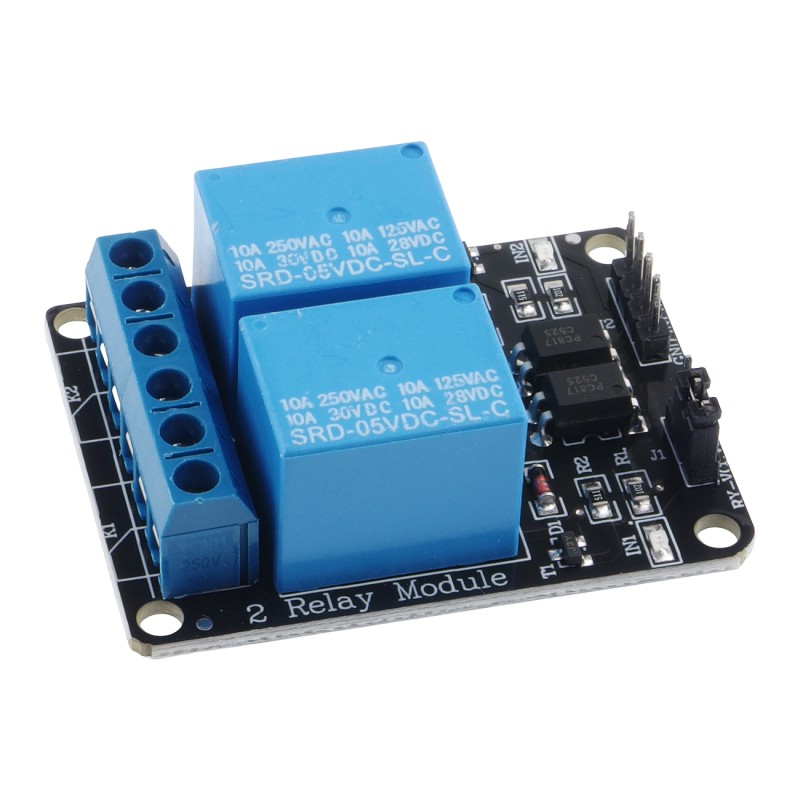

Iduino relay module, 2 channels with optoisolation, 10 A / 250 V AC, 5 V coil
ID: 1200541
5902186331525
zł10.90
Tax included
zł8.86 tax excl.
Iduino relay module with 2 channels and optoisolation, enabling control of loads up to 10 A at 250 V AC or 110 V DC. Powered by 5 V, it is ideally compatible with microcontrollers and development kits, providing safe and convenient circuit switching.
Description
Dual-channel Iduino relay module equipped with optoisolated inputs, allowing control of mains and low-voltage loads using a microcontroller or development board. The SRD-05VDC-SL-C relays operate at 5 V and enable switching of currents up to 10 A at 250 V AC or 110 V DC. Inputs triggered by a low state ensure compatibility with popular platforms such as Arduino, ESP32, and Raspberry Pi. Screw terminals (ARK type) provide easy load connection, while 2.54 mm goldpin headers simplify integration with control systems. The module also features mounting holes with a diameter of 3 mm.
Properties
- Number of channels: 2
- Relay: SRD-05VDC-SL-C
- Coil voltage: 5 V DC
- Supply voltage VCC: 5 V
- Control: low state (LOW)
- Isolation: input optoisolation
- Maximum contact voltage: 250 V AC / 110 V DC
- Maximum contact current: 10 A
- Control connectors: 2.54 mm goldpin
- Output connectors: ARK screw terminals
- Board dimensions: 50 × 38 mm
- Mounting hole diameter: 3 mm
1200541
Data sheet
- Output current
- 10A
- Number of channels
- 2
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 5 VDC
