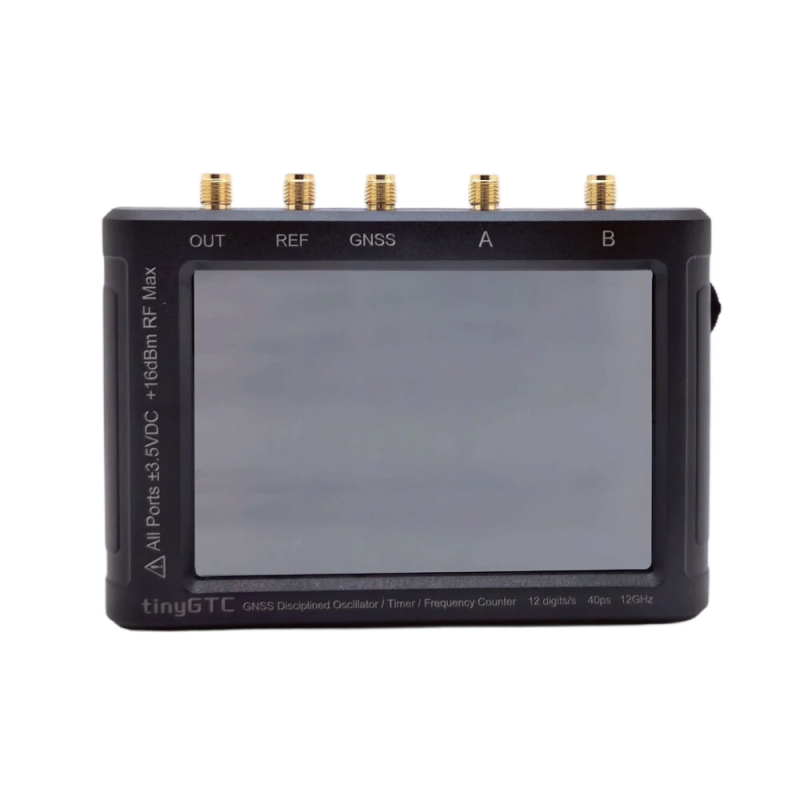

TinyGTC ZC412 - portable 12GHz frequency counter
ID: 1201728
zł878.99
Tax included
zł714.63 tax excl.
A portable, high-precision frequency counter designed for advanced RF, time, and phase measurements. It offers 40 ps time resolution, gapless measurement intervals, and an input bandwidth of up to 12 GHz via an SMA A input. A built-in GNSS-disciplined oscillator ensures synchronization with UTC time and high long-term stability. The device features a 4-inch touchscreen, battery power, and a USB and microSD card interface for storage and remote operation. TinyGTC ZC412
Description
TinyGTC ZC412 is a portable, high-precision frequency counter that combines advanced measurement capabilities with a compact and cost-effective design. The device is intended for demanding users involved in RF measurements, time synchronization, and high-accuracy signal analysis. Thanks to an impressive 40 ps time resolution, the TinyGTC ZC412 delivers exceptionally accurate frequency, time, and phase measurements. The counter supports gapless measurement intervals, enabling reliable ADEV determination, which is a unique feature in this class of instruments. The ZC412 model offers a very wide input bandwidth of up to 12 GHz on the SMA A input. A built-in GNSS-disciplined oscillator allows synchronization of the internal clock to UTC, ensuring excellent long-term stability. The clear 4-inch touchscreen provides convenient operation and quick access to all key parameters. The TinyGTC ZC412 can operate autonomously thanks to its built-in Li-ion battery, while also offering extensive communication options. The USB interface enables remote control and data acquisition, and the micro SD slot allows measurement results to be stored. The device is suitable for both laboratory and field use, wherever mobility, precision, and application flexibility are essential.
Features
- Input coupling:
- inputs A and B – DC
- REF input – AC
- SMA A connector:
- frequency range 0 – 12 GHz (DC)
- impedance 1 MΩ // 25 pF or 50 Ω
- SMA B connector:
- frequency range 0 – 350 MHz (DC)
- impedance 1 MΩ // 2 pF or 50 Ω
- SMA OUT connector:
- 0.1 Hz – 100 MHz
- square-wave or pulse signal, 3 Vpp
- AC coupling
- impedance 50 Ω
- SMA REF connector:
- optional external AC reference input 10 MHz (+5 dBm to +15 dBm) or output 8 kHz – 250 MHz, 3 Vpp
- AC coupling, 50 Ω
- SMA GPS connector:
- active GNSS antenna input with fixed +3 V supply
- Input impedance: 1 MΩ / 2 pF or optionally 50 Ω
- Time resolution: 40 ps
- Trigger level: 0 to 3.5 V
- Display: 4-inch touchscreen
- Measurement functions: frequency, time, phase, counting
- Power supply: built-in battery
- Maximum input voltage: ±3.5 V DC; 3.5 Vpp or 16 dBm at 50 Ω
- Interfaces: USB, pulse or square-wave output, external reference input/output, active GPS antenna, measurement inputs A and B
Kit contains
- TinyGTC ZC412 frequency counter
- USB cable
- SMA Tee adapter
- 2 short SMA cables
- Active GPS antenna
