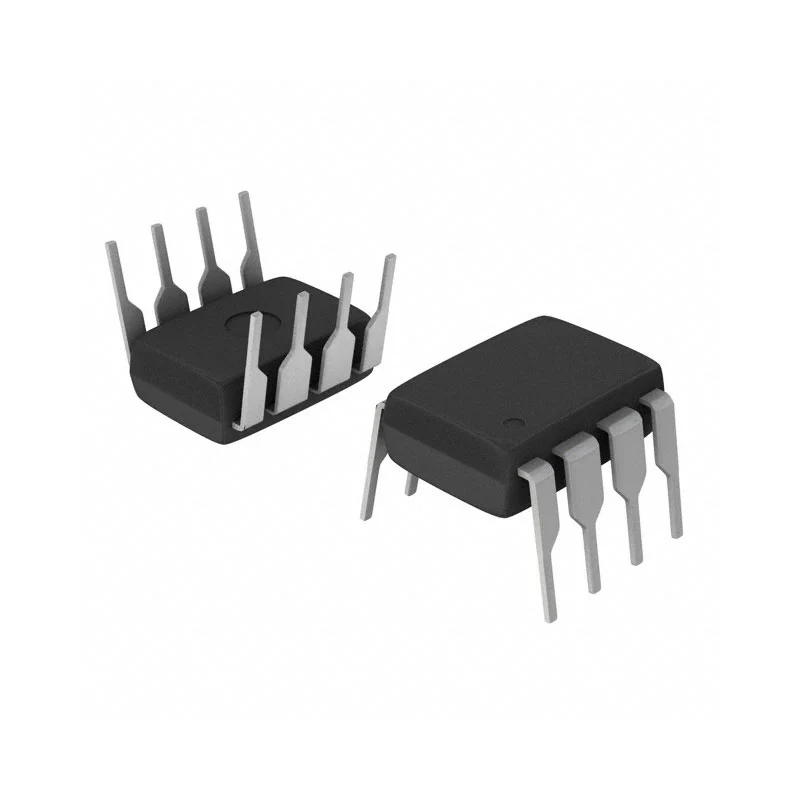

Main view
search
  • Main view
ID: 1207035
zł80.65
Tax included

zł65.57 tax excl.

High-performance dual audio operational amplifier designed for Hi-Fi equipment, preamplifiers, headphone amplifiers, and advanced audio projects. The MUSES01 offers a wide supply voltage range, low input bias current, and characteristics optimized for high-quality audio signal processing. Nisshinbo Micro Devices MUSES01

24h
Available
Available quantity: 11

Description

The MUSES01 dual audio operational amplifier belongs to a series developed by Nisshinbo Micro Devices for high-quality analog signal paths. The device integrates two independent operational amplifiers in a DIP-8 package, making it suitable for preamplifiers, active filters, headphone amplifiers, audio players, and Hi-Fi equipment. It features a slew rate of 12 V/µs, a gain bandwidth product of 3.3 MHz, and a low input bias current of 200 pA. The wide supply voltage range of ±9 V to ±16 V (18 V to 32 V total) allows integration into a variety of audio and analog circuit designs.

Features

  • Manufacturer: Nisshinbo Micro Devices
  • Manufacturer part number: MUSES01
  • Type: dual audio operational amplifier
  • Number of amplifiers: 2
  • Package: DIP-8
  • Through-hole THT mounting
  • Gain bandwidth product (GBW): 3.3 MHz
  • Slew rate: 12 V/µs
  • Input bias current: 200 pA
  • Output current per channel: 25 mA
  • Supply current: 8.5 mA
  • Input offset voltage: 800 µV
  • Supply voltage range: 18 V to 32 V
  • Operating temperature range: -40°C to +85°C
  • RoHS compliant
1207035

Data sheet

Package
DIP08
