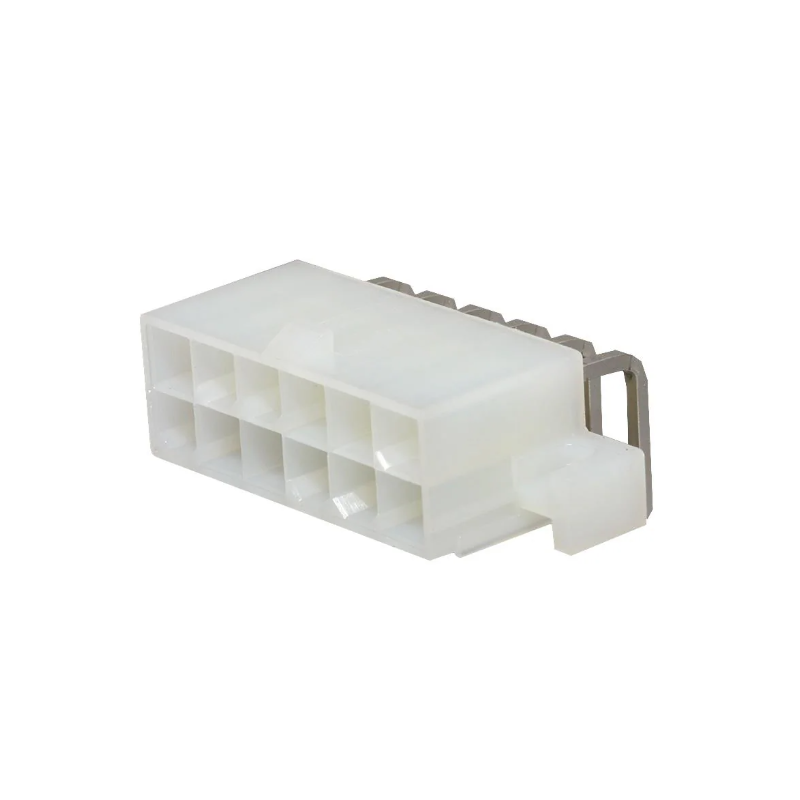

MX-5569-12 Angled 12-Pin Wafer PCB Socket, 4.20 mm Pitch
ID: 39685
5902186301115
zł5.90
Tax included
zł4.80 tax excl.
The MX-5569-12 socket is a 12-pin, right-angle compactible with Mini-Fit Jr. connector with a 4.2 mm pitch, designed for wire-to-board mounting. Engineered for reliable power and signal transmission, it is commonly used in industrial equipment, computer systems, and power supply applications.
Description
The MX-5569-12 connector is a 12-pin male compactible with Mini-Fit Jr. socket designed for THT (through-hole) PCB mounting in a 90° angled orientation. With a 4.2 mm pitch and 2x6 pin configuration, it ensures reliable transmission of currents up to 9 A per pin, making it an ideal solution for power and signal applications in industrial and computer electronics. The connector features tin-plated contacts and mounting clips for added mechanical stability during operation.
Specifications
- Connector Type: Socket (Male)
- Number of Pins: 12
- Pin Layout: 2x6
- Pitch: 4.2 mm
- Orientation: 90° angled
- Electrical Mounting: THT (Through-Hole Technology)
- Mechanical Mounting: Mounting clips
- Maximum Current: 9 A
- Contact Plating: Tin
- Application: Wire-to-board connections
- RoHS Compliant: Yes
